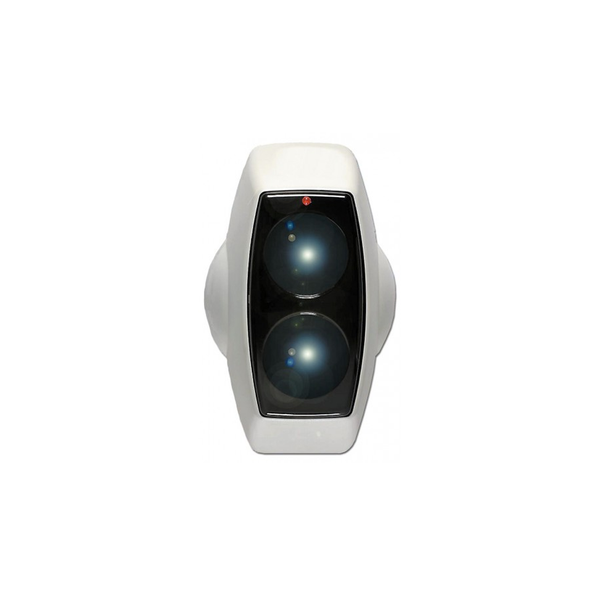

Aritech 2000 Series An. Add. Reflective Beam Det- 50 m

SKU: FD2705R

The FD2705R and FD2710R provides an integral, loop powered analogue addressable reflective beam detector up to 100 m distance. The FD2705R and FD2710R consist of an infrared transmitter and receiver in one single compact housing. The infrared signal … Read More

Key Features
  • Loop Powered
  • 2000 series protocol
  • Area coverage up to 600 m²
  • Range from 5 to 50 m and 50 to 100 m
  • Up to ceiling heights of 25 m
  • Low current consumption
  • 3 selectable alarm thresholds
  • Self check and automatic contamination compensation
  • Automatic discrimination between fire and fault
  • Vertical or horizontal mount

Limited Availability

Description

The FD2705R and FD2710R provides an integral, loop powered analogue addressable reflective beam detector up to 100 m distance. The FD2705R and FD2710R consist of an infrared transmitter and receiver in one single compact housing. The infrared signal is reflected by a prism and analysed for smoke presence. It is particularly designed to be use where point smoke detectors are not practical due to height or inaccessibility. The FD27xxR series units are loop powered for connection to 1200/2000 series fire panels. They use the Aritech 2000 series protocol. Wiring is restricted to a minimum as the transmitter and receiver are in the same housing. The detector is very easily aligned by means of checking the alignment LEDs. Easy alignment ensures optimum operation, both electrically and mechanically. The unit is easily tested using the graduated obscuration test card supplied. The low power consumption of the units allows multiple beams to be powered on the same loop without compromising the system's autonomy.

Download

FD2705R.pdf
