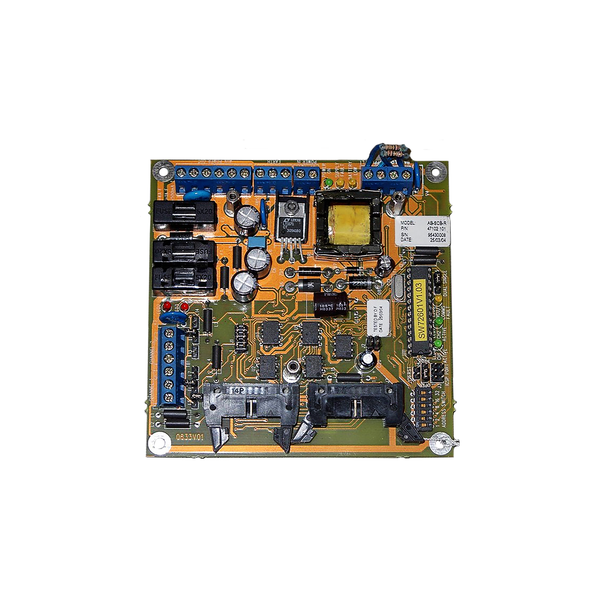

Ziton ZP3 Serial Control Bus Interface Board

Ziton ZP3 Serial Control Bus Interface Board

SKU: ZP3AB-SCB-R

The ZP3AB-SCB-R provides a remote interface on the system control bus wiring enabling repeat indication and system control, at locations remote from the main panel position. Usually installed within auxiliary equipment cabinets, the interface is comp… Read More

Key Features
  • Up to 32 or 64 remote serial interfaces - dependant upon control panel software
  • Shares common wiring with remote display units
  • RS485 communication protocol
  • Flexible wiring connection
Range:
ZP3

Limited Availability

Description

The ZP3AB-SCB-R provides a remote interface on the system control bus wiring enabling repeat indication and system control, at locations remote from the main panel position. Usually installed within auxiliary equipment cabinets, the interface is compatible with all ZP3AB optional facility boards, including the RL8 relay module, the MIP8 input card and the OP24 open collector output card. The interface can be positioned anywhere on the system bus wiring which it shares with remote display units (RDUs). Driven from within the main control panel by an optional ZP2AB-SCB-D driver board, a combination of up to 32 or 64 RDUs and SCB-Rs can be controlled dependant upon the ZP3 panel software.

Download

ZP3AB-SCB-R.pdf
