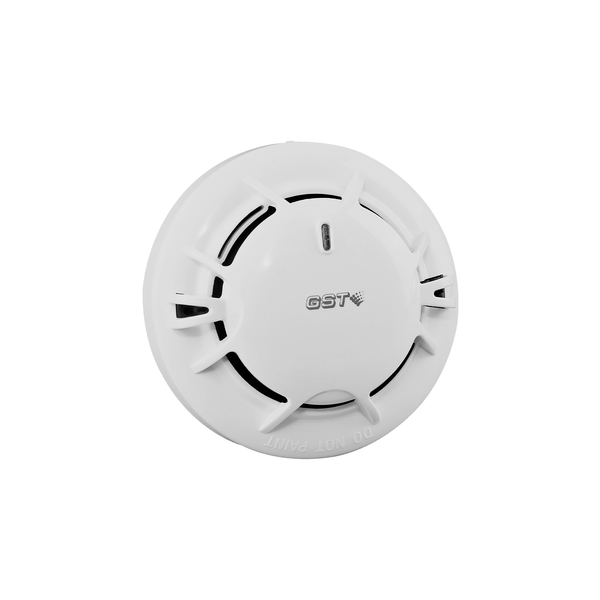

Ziton Conventional Optical Smoke Detector

Ziton Conventional Optical Smoke Detector

SKU: DC-9102E

The DC-9102E is a photoelectric (optical) detector suitable for use in hotels, restaurants, office buildings, schools, banks, warehouses, libraries, computer rooms, switch rooms, etc. The detector supports installation on the GST DB-01 conventional d… Read More

Key Features
  • Supports drift compensation to enable good environmental adaptability
  • Self-diagnostic
  • Local test activation with reed switch
  • Chamber contamination checking
  • All round LED visibility (360° viewing angle) avoids time spent on specific detector orientation
  • Configurable polling LED support
  • Remote indicator output
  • Removable sensing chamber for easy maintenance
  • 2 Programmable smoke sensitivity levels

Limited Availability

Description

The DC-9102E is a photoelectric (optical) detector suitable for use in hotels, restaurants, office buildings, schools, banks, warehouses, libraries, computer rooms, switch rooms, etc. The detector supports installation on the GST DB-01 conventional detector base for standard applications, or the GST DB-01D diode base when head-out functionality to BS5839 standard is required. Detection sensitivities are programmable using the GST P-9910B device programmer.

Download

DC-9102E.pdf
