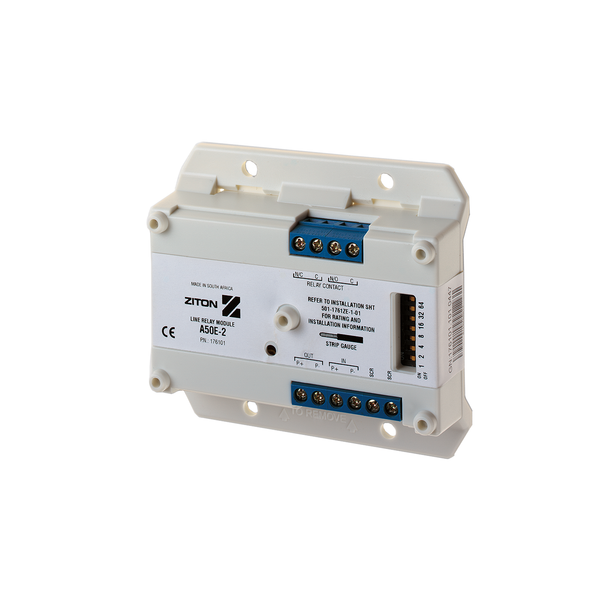

Ziton Addressable Relay Interface

Ziton Addressable Relay Interface

SKU: A50E-2

The A50E-2 is an addressable relay providing single pole, volt free, change-over contacts. The unit is intended for installation within the equipment to be switched, thereby offering savings in installation costs when compared to long, auxiliary circ… Read More

Key Features
  • Addressable interface unit
  • Low profile
  • DIN rail mounted
  • Loop powered - installed adjacent to equipment to be switched
  • Operated from any combination of input addresses
  • Volt free, change over contacts
  • EN54:18 Approved and CPR certified

In Stock

Description

The A50E-2 is an addressable relay providing single pole, volt free, change-over contacts. The unit is intended for installation within the equipment to be switched, thereby offering savings in installation costs when compared to long, auxiliary circuit, wiring runs out from the control panel. Approved to EN54-18, the relay may be located anywhere on the two core ZP loop and is designed for power up or shut down of building services, for example air conditioning plant, in fire conditions. The unit is ideal for the control of associated system equipment such as door release circuits or the emergency shutdown of high risk services, for instance gas or oil supply valves in boiler rooms.

Download

A50E-2.pdf
