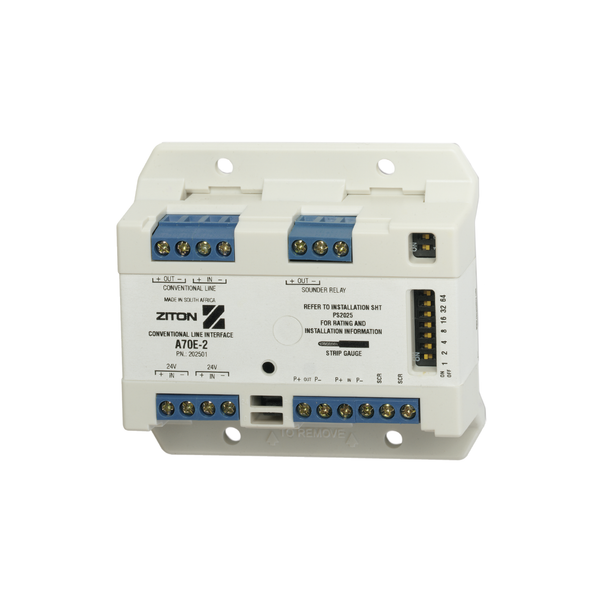

Ziton Zone Interface Module

Ziton Zone Interface Module

SKU: A70E-2

The A70E-2 is a ZP7 series, addressable interface for conventional fire detectors. It is fully loop powered and enables existing or new conventional fire detection zones to be interfaced to an addressable fire alarm system, allowing all areas of a si… Read More

Key Features
  • Interfaces conventional devices to an addressable loop
  • Standard and intrinsic safe detector support
  • Status reported 2 seconds
  • Open, short and head-out supervision
  • DIN35 rail mounted
  • Up to 127 conventional zones interfaced to a ZP loop (with external PSU)
  • EN54:18 approved and CPR certified

Limited Availability

Description

The A70E-2 is a ZP7 series, addressable interface for conventional fire detectors. It is fully loop powered and enables existing or new conventional fire detection zones to be interfaced to an addressable fire alarm system, allowing all areas of a site to be controlled by a Ziton addressable fire panel. A single output is additionally available to switch external 24VDC to output contacts in case of alarm. Via the A70E-2 each conventional zone is assigned a unique loop address. The zones are monitored for alarm and fault conditions and the status reported to the fire panel every 2 seconds. Up to 15 Ziton Z600 series conventional devices can be connected to the interface, taking a single address on the loop. The Ziton protocol supports up to 127 addresses per loop.

Download

A70E-2.pdf
