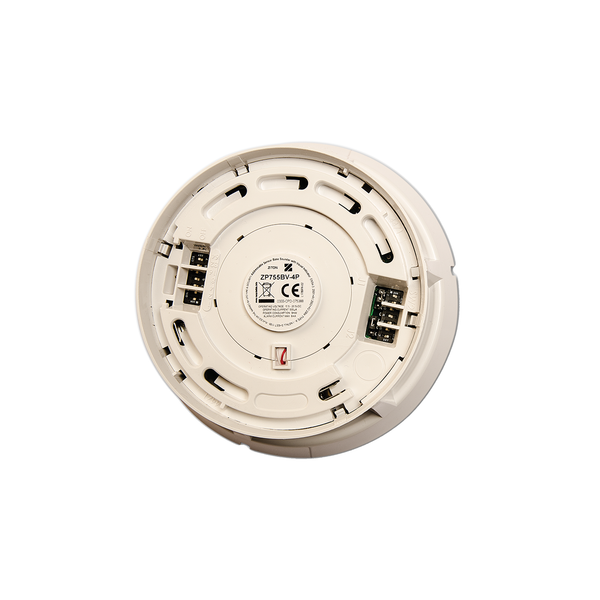

Ziton Addressable Sounder Beacon Base

Ziton Addressable Sounder Beacon Base

SKU: ZP755BV-4P

The ZP755BV-4P is a POLAR WHITE, addressable loop powered base sounder with visual indicator for use on ZP fire alarm systems. The ZP755BV combines a detector base, audible sounder and high intensity visual indicator in a single stylish moulding. It … Read More

Key Features
  • Detector, sounder and visual indicator from a single wiring point, minimising installation costs
  • Powered directly from the fire panel loop
  • Separate addresses selectable for detector and notification device
  • Up to 35 units directly on the loop
  • High efficiency sound gun transducer
  • Plug in base – no direct wiring to the notification device
  • Wide range of international sound types and frequencies
  • EN54:3 approved and CPR certified

Limited Availability

Description

The ZP755BV-4P is a POLAR WHITE, addressable loop powered base sounder with visual indicator for use on ZP fire alarm systems. The ZP755BV combines a detector base, audible sounder and high intensity visual indicator in a single stylish moulding. It offers both audible and visual warnings from a single, addressable, loop wired unit. Providing an elegant solution for areas where the installation of a separate detector, sounder and visual indicator would prove expensive, both in equipment value and wiring costs, the ZP755BV meets the requirements of most local legislation. Installation time is further reduced as the moulding plugs directly onto a first fix base, eliminating the need for any internal connections. The ZP755BV is perfectly suited for any location involving high levels of background noise.

Download

ZP755BV-4P.pdf
