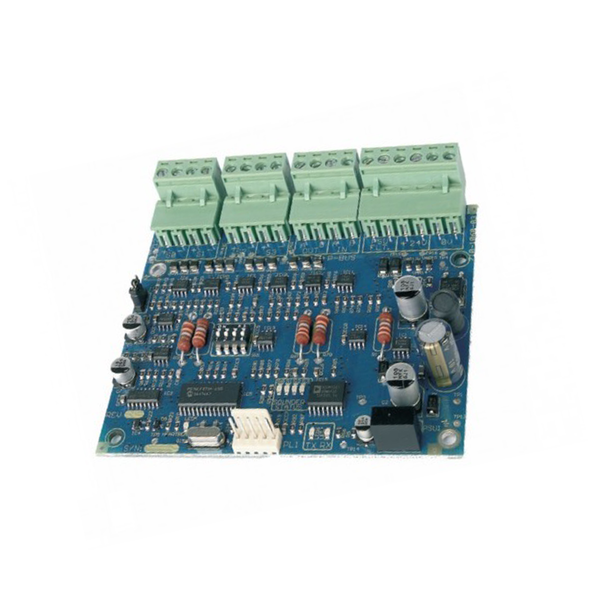

Peripheral Bus - 4-way sounder card

Peripheral Bus - 4-way sounder card

SKU: MXP-034

The Programmable 4-Way Sounder Card is an optional peripheral unit that provides four individually programmable, and monitored, sounder output circuits compliant with BSEN54-2: 1998 Clause 7.8. Up to 16 Cards can be connected to a multi-loop panel pr… Read More

Key Features
  • 4 Way Programmable Sounder Card
  • 16 cards max per Control panel totalling 64, 1 Amp rated outputs
  • Easily configured via PC-NET-003
  • Fully Synchronised
  • Each output is 1A rated, and monitored for open and short circuits
  • Each output is individually programmable using the Dynamix cause-and-effects rules
  • All outputs can be synchronised in pulsing modes
  • Up to 16 cards can be connected giving a total of 64 additional outputs
  • Each output may be individually programmed
Range:
MxPro 5

In Stock

Description

The Programmable 4-Way Sounder Card is an optional peripheral unit that provides four individually programmable, and monitored, sounder output circuits compliant with BSEN54-2: 1998 Clause 7.8. Up to 16 Cards can be connected to a multi-loop panel providing a maximum of 64 additional local sounder outputs. Each output is fully programmable using the powerful 'DynamiX' Cause and Effect rules, and all outputs are synchronised. The unit is available as either a printed circuit card only or as a boxed version with integral 4A power supply.
