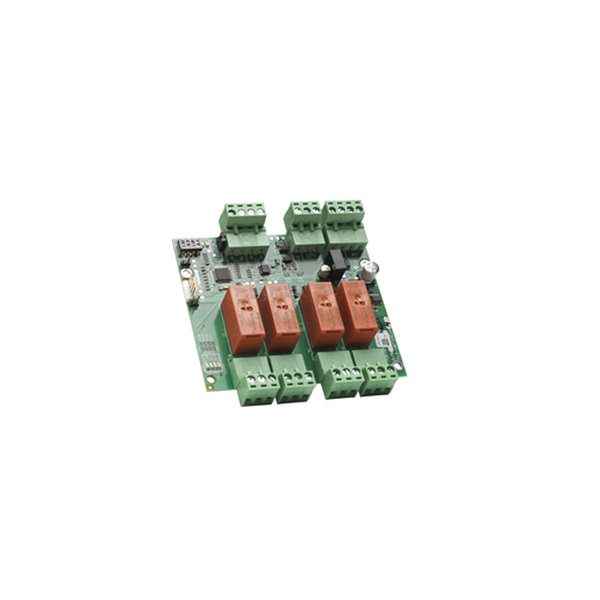

Peripheral Bus - 4-way relay card with 1.5A PSU (Boxed)

SKU: MXP-035-BXP

The Programmable 4-Way Relay Card is an optional peripheral unit that provides four individually programmable relay output circuits. Up to 16 cards can be connected to a multi-loop control panel providing a maximum of up to 64 additional local relay … Read More

Key Features
  • Each output is 230V, 5A rated
  • Each output is individually programmable with any of the available DynamiX cause-and-effect rules
  • Up to 16 cards can be connected providing a total of 64 additional outputs
  • Each output may be individually programmed
  • An input is provided to monitor the fault output from a power supply.
Range:
MxPro 5

In Stock

Description

The Programmable 4-Way Relay Card is an optional peripheral unit that provides four individually programmable relay output circuits. Up to 16 cards can be connected to a multi-loop control panel providing a maximum of up to 64 additional local relay outputs. Each output is fully programmable using the powerful dynamic cause-and-effects rules, and all outputs are synchronised. The unit is available as either a printed circuit card only or as a boxed version with integral 1A power supply. Plant control and signalling outputs. Each output can be assigned to an individual output group and is fully programmable for any output function allowed within the MxPro 4 configuration program. Fitting of the Programmable 4-Way Relay Card in a panel precludes fitting of other panel option cards. Requires installation of the Peripheral Bus Interface Card in the panel when using the MxPro 4 series.
