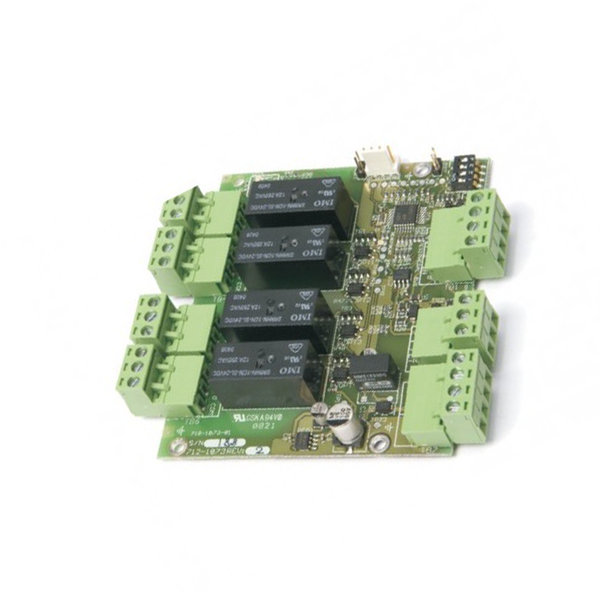

Peripheral Bus - 4-way relay card

SKU: MXP-035

The programmable 4-Way Relay Card is an optional peripheral unit that provides four individually programmable relay output circuits. Up to 16 Cards can be connected to a multi-loop control panel providing a maximum of up to 64 additional local relay … Read More

Key Features

4 Way Programmable Relay Card
16 cards max per Control panel totalling 64, 1 Amp rated outputs
Easily Configured via PC-NET-003

Range:

MxPro 5

Description

Description

The programmable 4-Way Relay Card is an optional peripheral unit that provides four individually programmable relay output circuits. Up to 16 Cards can be connected to a multi-loop control panel providing a maximum of up to 64 additional local relay outputs. Each output is fully programmable using the powerful 'DynamiX' cause and effects rules, and all outputs are synchronised. The unit is available as either a printed circuit card only, or as a boxed version with integral 1A power supply.
