Description

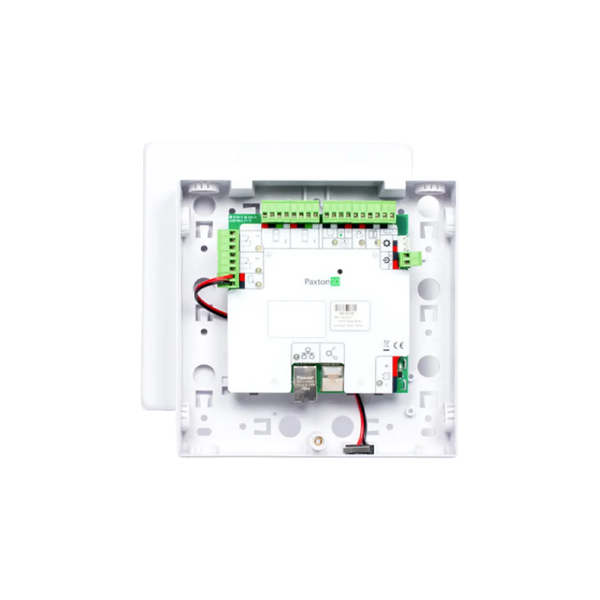

Paxton10 Door Controllers are the building blocks of the Paxton10 system. Each one provides control of a single door and a port to allow support for up to three Paxton10 Wireless Connectors for additional functionality. A single Paxton10 system can include up to 1000 door controllers. The Paxton10 door controller is a network device that communicates over TCP/IP and can be integrated into an existing network infrastructure. The Paxton10 PoE+ Door Controller is equipped with a built-in PoE+ splitter, with which it is possible to supply the door controller and door lock via PoE+, so no 230v connection is required at the door. We recommend using a TCP/IP network switch with PoE+ output.It is also possible to place a backup battery in the Paxton10 PoE+ Door Controller, if you want an extra backup in case of power failure, we recommend placing the switch behind a UPS. The door controller is equipped with 4 inputs, tamper, 230v fail, door contact and RTE. An intruder alarm can be integrated using the Paxton10 Alarm Connector The Paxton10 Door Controller - Plastic Enclosure provides a versatile solution for Paxton10 where centralised or low voltage power is already available. Mains and Power over Ethernet (PoE) powered options also available. This product is also available as a PCB only, without plastic enclosure.
