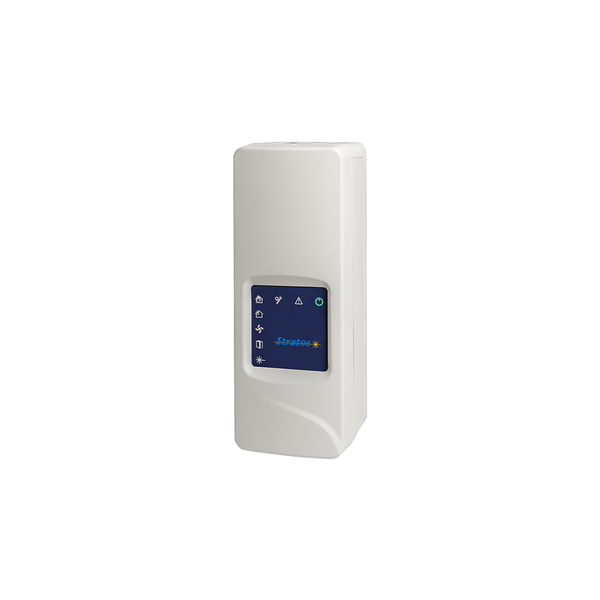

Modulaser Minimum Display module

SKU: 9-30780

ModuLaser is a scalable aspirating smoke detection solution that makes installation easier, maintenance quicker, and takes applications further than traditional air sampling detectors. Two basic module types comprise the ModuLaser solution: a display… Read More

Key Features
  • Modular Design : Separate centrally-controllable detector modules allow efficient piping and discrete zones with no overlap.
  • Zoned aspirating smoke detection: Individual detector modules provide detection for individual areas or zones.
  • Ingenious docking station design allows detectors to be easily connected as a group. Sensitive electronics are easily removed to ensure they will not be damaged during first fix installation.
  • Intuitive user interface : Bright easy-to-see colour TFT display and universal navigation and control buttons take the guesswork out of programming and diagnostics.
  • Easy pipe connection : The quick fit pipe adaptor system locks down securely, yet leaves plenty of room for easy pipe connection and removal.
  • Quick location of smoke : Each detector module is self-contained, which means no delays in determining in which zone (sampling pipe) smoke is present.
Range:
Modulaser

Limited Availability

Description

ModuLaser is a scalable aspirating smoke detection solution that makes installation easier, maintenance quicker, and takes applications further than traditional air sampling detectors. Two basic module types comprise the ModuLaser solution: a display module, and a detector module. Each detector module can accommodate up to 250 meters combined sampling pipe. Display modules and detector modules communicate by RS-485 interconnections. Display modules are available in three configurations: Standard with TFT colour display, status LED's and navigation buttons, Minimum with only status LED's, and Command which is similar to the Standard but with the added functionality to control various modules over SenseNET. The Minimum and Standard Display Modules can each support up to 8 detector modules, while the Command Display Module can support up to 127 modules across the SenseNET network.

Download

9-30780.pdf
