Kidde Airsense Wire Burn Test Rig

SKU: 9-30051

The unit incorporates a switched 230 volts A.C. input feeding the primary coil of a 200 VA transformer. The transformer has two 6 volt A.C. outputs that are connected across three output terminals. The two outer terminals are the individual 6 volt A.… Read More

Key Features

BS 6266: 1992. Appendix A. Procedures A.3 and A.4
British Telecom WNP/CPG 57200 1998 Section 4.1. (Formerly FP1063.4 Issue 8) Ultra-high sensitivity. Very high sensitivity.

Description

Description

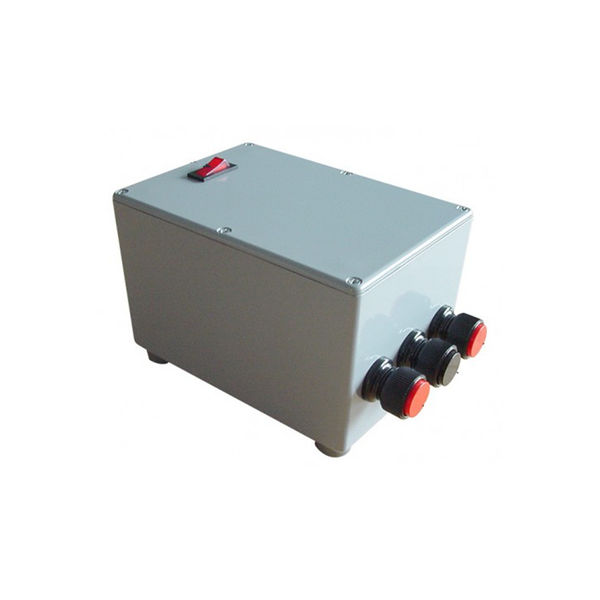

The unit incorporates a switched 230 volts A.C. input feeding the primary coil of a 200 VA transformer. The transformer has two 6 volt A.C. outputs that are connected across three output terminals. The two outer terminals are the individual 6 volt A.C. outputs and the centre terminal is a common return. This equipment is fitted to a die-cast metal enclosure that is connected to earth. The 230 volts A.C. supply plug is fitted with a 3.0 Amp fuse.
