Kentec Sigma XT Ancillary PCB

Description

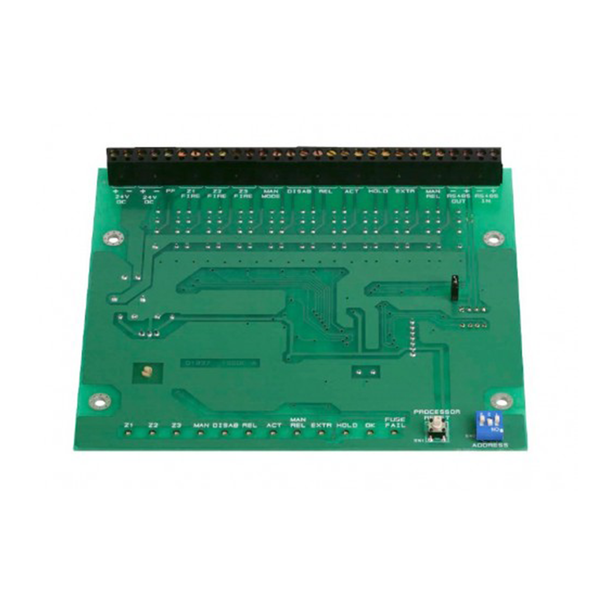

The Sigma XT Ancillary Board is compatible with all Sigma XT control panels which have operating software version SIGXT_11A. HEX or above. The board provides volt free normally open contacts allowing control of sub-systems and plant remotely from the main panel over a two wire data bus. Mains powered, boxed Ancillary boards require only a two core data cable from the main control panel. 24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source. Up to 7 Ancillary boards can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch. The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres. A mixture of status units and Ancillary boards, up to a maximum of 7 of each type, can be connected to the serial data bus.
