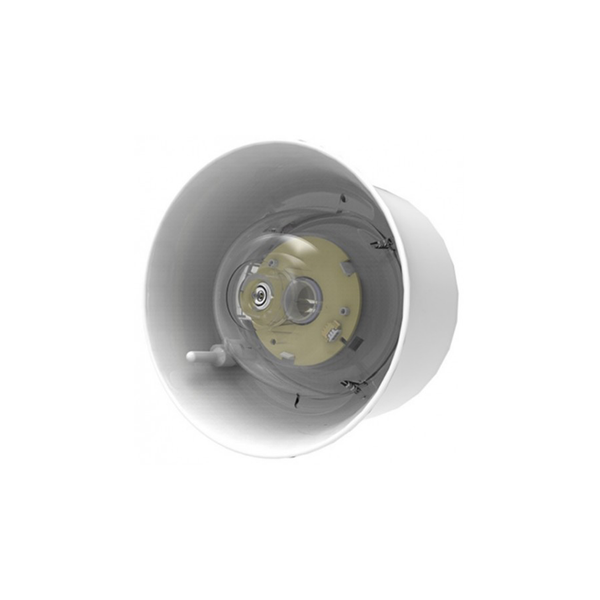

Hochiki Addressable Wall Sounder VAD - WB, RF

SKU: CHQ-WSB2(WHT)/RL

Key Features

Single Loop Address
Variable Sound Output 90 ~ 102 dB(A)
Sounder and Beacon can operated independently
0.5 or 1Hz flash frequency
High Intensity LED technology
Fits Hochiki Standard or Isolator Base
51 User-Selectable Tones (all tones EN54-3 approved)
Auto-Shutdown feature prevents noise pollution
‘O’ Rated Beacon to EN54-23
Available with Red or White LEDs/Case

Description
Downloads

Description

Model CHQ-WSB2(WHT)/RL is an EN54-23 compliant addressable loop powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit features an integral beacon within the horn utilising high intensity LED technology and is designed to fit to the Standard Base (YBO-R/3(WHT)) or the Isolator Base (YBO-R/SCI(WHT-SNDR)). The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the WS2-WPK(WHT) Weatherproof Kit, which consists of a specialised back box and gasket set. Also incorporates an auto shutdown mode which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.
