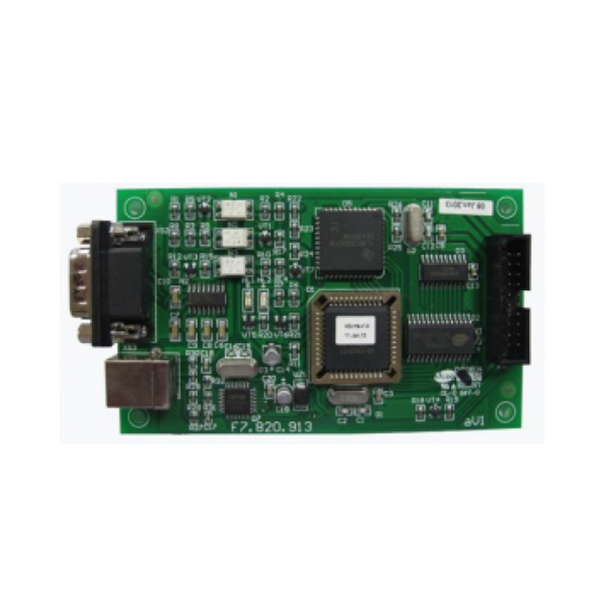

GST RS232 Comms. Board of GST200 & GST200-2 for Commissioning & GMC Connection

GST RS232 Comms. Board of GST200 & GST200-2 for Commissioning & GMC Connection

SKU: P-9930

P-9930 RS232 card is an optional card for GST200 series control panels, providing two photoelectric isolation RS232 interfaces for connecting with GST Graphic Monitor Center and GST Defining Tool. This card shouldn’t be inserted and removed when it i… Read More

Key Features
  • Standard RS232 and USB interfaces.
  • Connecting GST Graphic Monitor Center and GST Defining Tool.

Limited Availability

Description

P-9930 RS232 card is an optional card for GST200 series control panels, providing two photoelectric isolation RS232 interfaces for connecting with GST Graphic Monitor Center and GST Defining Tool. This card shouldn’t be inserted and removed when it is energized. When entering calibration mode, pressing SK1 key (reset main board), it will display Colour CRT OK if registration is successful. Modify Address of Communication Card: Press SYSTEM key, input Manager Password. After confirming the password, follow the next to operate: 3 Network Setup -> 1 NET Local Address, pressing the number chooses the option.

Download

P-9930.pdf
