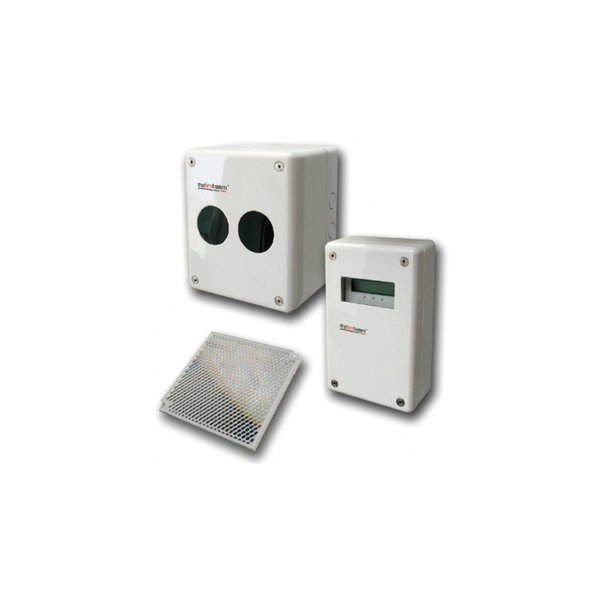

Firebeam Xtra including controller and 1 reflector covers distance 7-70 metres

The Fire Beam will self-align itself to the centre of the reflector when commissioning and will automatically keep alignment when building movement occurs. This intelligent motorisation will mean less false alarms therefore saving time, resources, re… Read More

Key Features

• VdS approved fully compliant to EN 54-12:2015 beam detector
• Under test conditions at 40 metres, recorded an auto-align time of 3m02s using the Fire Beam straight out of the box. Once aligned a routine re-alignment was timed 67s.
• The Fire Beam Xtra can display seven different languages: English, German, Spanish, French, Italian, Dutch, and Czech.
• As motorised beams work by seeing the reflector, if they are unable to because of unavoidable obscuration they can fall out of alignment when trying to find the obscured reflector. The Fire Beam Xtra will remain in perfect alignment in these environments simply by not trying to re-align itself.
• Adding a delay means that the beam will not check for alignment if the received signal drops for a predetermined time. Pre-set at 4 hours this can be altered to anywhere between 0 to 12 hours if required.
• With the introduction of phasing it is now possible to mount beams facing each other with reflectors in between. There are up to 7 different sampling rates to choose from, alleviating any cross talk problems.
• Changing the hysteresis will change the delay in returning from a fire state back to a normal state. This action prevents small fluctuations in returned signal causing the beam to fall in and out of a fire state. This can be adjusted to anywhere between 1% and 40%.
• Up to 160 Metre Range: With new enhanced optics you can cover distances up to 160 metres, meaning for distances over 100 metres you no longer need to use two beams, saving both time and money.
