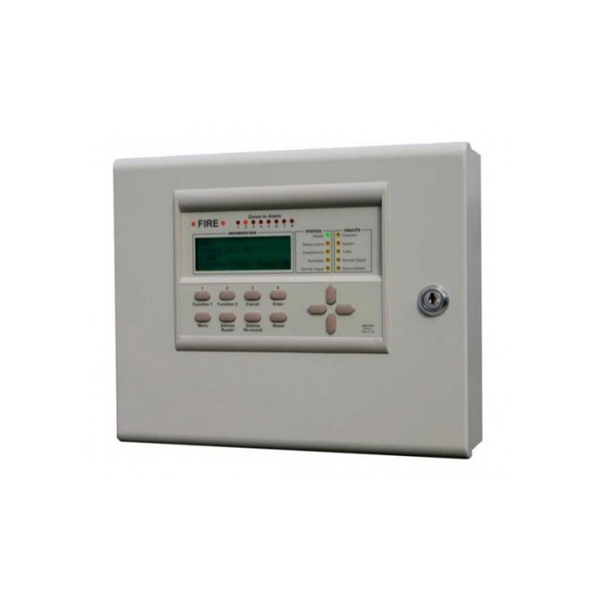

100 Zone Radio Control Panel (SLA Battery not included)

SKU: EDA-Z5100

The Zerio Plus is a compact radio fire alarm system designed for use in any type of commercial or residential premises. With the culmination of 30 years’ experience of fire alarm system design and manufacture, the Zerio Plus has replaced the well-est… Read More

Key Features
  • Maximum Number of Devices 240 (Note: for larger premises up to four systems can be linked together) (Devices include Detectors, Call Points, Transmitters Sounders and I/O units)
  • Max no of radio control / booster units 15 (per system) (Includes all control, repeater and booster panels, wired transceiver)
  • Dimensions (mm) W x H x D 275 x 220 x 85mm
  • Weight (not including battery) 4Kg
  • Alarm Indicators – Twin flashing red LEDs
  • Red individual zone indication
  • Fire message on LCD with 60 scrolling characters of location text
  • Fault Indicators – Amber LEDs and LCD providing details and location of fault with 60 scrolling characters of location text
  • Event Log Storage – 255 events maximum
  • Supply: Mains : 230V 50Hz 0.3A max

Limited Availability

Description

The Zerio Plus is a compact radio fire alarm system designed for use in any type of commercial or residential premises. With the culmination of 30 years’ experience of fire alarm system design and manufacture, the Zerio Plus has replaced the well-established Millennium and Zerio series of equipment combining the advantages and features of both systems. The installer does not require expensive additional equipment to configure the complete system. Once installed, the control panel is used to aid system set-up, program devices and to commission the system. The automatic set-up and learn modes simplify configuration decisions, reducing the possibility of errors. The servicing/addition/removal of devices does not require extra programming equipment. Complex cause and effects can be programmed into the panel using the front keypad or by connecting a standard USB keyboard. Alternatively by programming a USB memory fob with a PC and then downloading the information into the panel. Internal configuration and operating data can be downloaded on to the same memory fob and then analysed on a PC. Configuration is also stored on a removable memory card for backup. The panel is capable of warning of any devices approaching their pre-programmed alarm condition and should any of the devices gradually become contaminated, a warning condition is generated. If devices need to be installed beyond the range of the control panel, either a radio booster, a wired transceiver or even another control panel can be added, to relay information around the system. Up to16 of these can be added to the system, which operate as intelligent signal repeaters. Should larger systems be required, they can be linked allowing for 960 devices with 60 panels.
