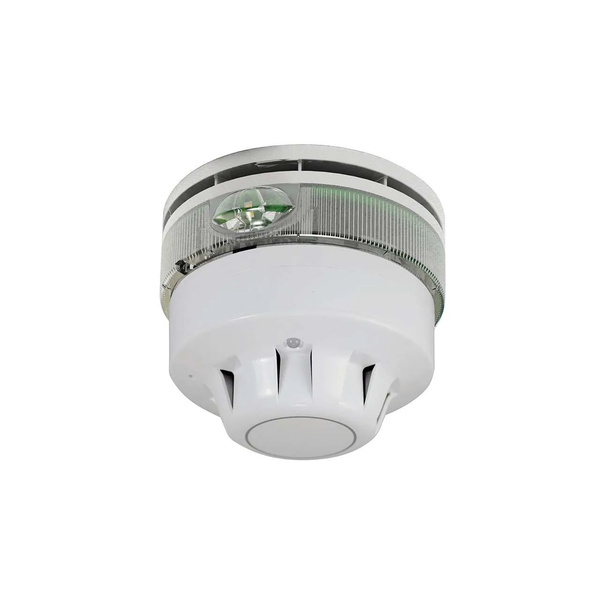

C-3-8 Addressable Base VAD (With 96dB(A) Sounder)

SKU: BF456A/CX/W

The BF456A/CX/W C-3-8 Addressable Base VAD Sounder is compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. It’s designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked Sounder/VAD/Detecto… Read More

Key Features
  • Third-party certified to EN54-3 (Sounders), EN54-23 (VADs) and 17 (Isolators) by the LPCB
  • Provides ‘C-3-8’ light distribution (min 0.4 lux over a 3 x 8m cylindrical area)
  • Supplied with a BF431QCP quick connect plate and detector spur wires
  • Impressive 96dB(A) sound output @ 1m
  • Onboard short-circuit loop isolator
  • 550µA quiescent current
  • 14mA alarm current @24V DC (VAD lit, sounder on max)
  • Group addressing facility allows multiple devices to be operated simultaneously
  • 7 selectable volume levels and up to 15 selectable tone pairs
  • Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use

In Stock

Description

The BF456A/CX/W C-3-8 Addressable Base VAD Sounder is compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. It’s designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked Sounder/VAD/Detector Base combination.
