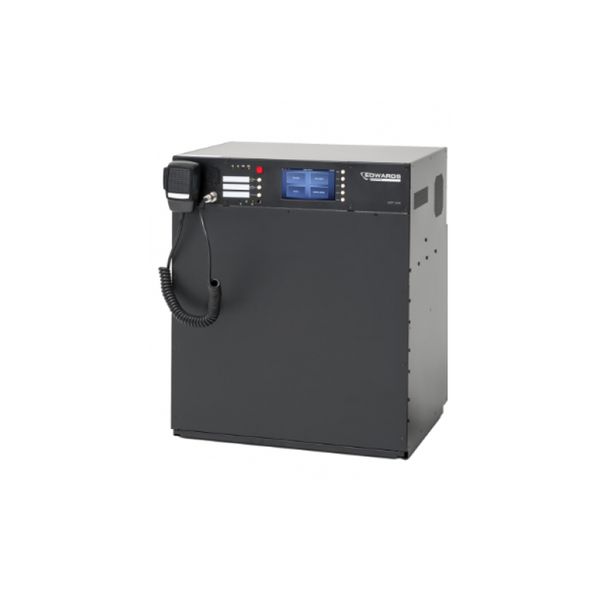

Voice Evacuation System (L)

Voice Evacuation System (L)

SKU: EST-VES-4002-L

EST-VES and EST-VES-8003 are scalable Public Address & Voice Alarm units suitable for multi-purpose architectures. Devices from EST-VES and EST-VES-8003 series are voice alarm compact control units containing all components within one compact housing… Read More

Key Features
  • Stand alone or TCP/IP network architecture
  • All in one – independent wall mount EN 54-4 / 16 PA/VA unit
  • Impedance speaker monitoring
  • Remote management
  • Up to 254 devices can be connected on the network (incl. fireman and zone microphones)
  • Ability to connect standalone EST VES units via fiber optic / copper or both cables. Compatibility with RACK mounted modular EST ENT VES
  • DSP audio processing on board
  • Professional Sound Quality
  • Evacuation, paging message and background music features
  • Simple installation
ItemType:
InvtPart

Limited Availability

Description

EST-VES and EST-VES-8003 are scalable Public Address & Voice Alarm units suitable for multi-purpose architectures. Devices from EST-VES and EST-VES-8003 series are voice alarm compact control units containing all components within one compact housing, which meet all the requirements of EN 54-16 and EN 54-4 (certificate of constancy of performance 1438-CPR-0659). Whole concept of the system is based on the high quality audio network distribution nodes equipped either with two independent 160 W, 320 W or three independent transformerless 500 W class D amplifiers, which distribute 100 V signals to 4, 8 or 16 speaker lines depending on the type. The system also ensures operation of a backup amplifier for the Emergency priority type of signals. All type of centrals are equipped with integrated backup power supply and EN 54-4 compliant charging unit. EST-VES and EST-VES-8003 are designed to be a Plug & Play device with all elements expected from Voice Evacuation Systems; including a built-in fire microphone, touchscreen for global control, DSP, programmable contact inputs and buttons, time scheduler, charger with battery mounting space and expandable memory size for messages – all fitted into IP30 chassis or dedicated 15u rack for EST-VES-8003 8003LNR with 8003R. EST-VES and EST-VES-8003 belongs to the family of independent EVAC systems which can be networked together and extended by desktop zone microphones or fireman microphones via TCP/IP network to provide live announcements and background music inputs. The system has been designed to be wired using CAT5 cables for paging microphones and fibre-optic redundant interlink connections between the systems. All systems support up to 45 high quality audio signals distributed over 254 devices in the network.
