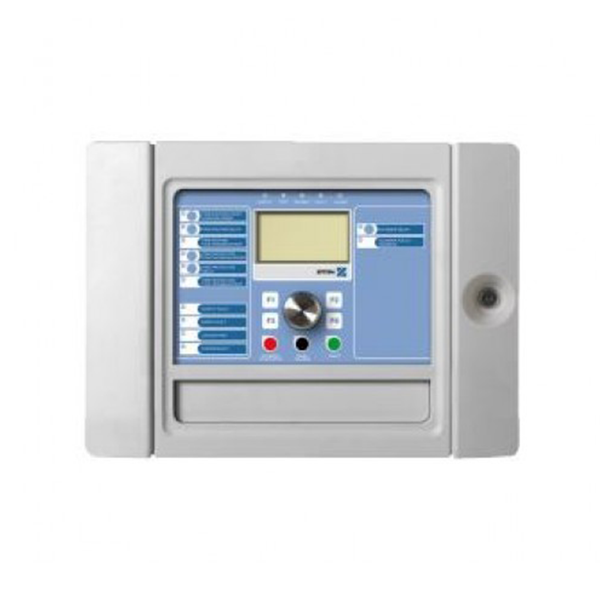

ZP2 - 1 Loop addressable panel + Fire Brigade Controls

ZP2 - 1 Loop addressable panel + Fire Brigade Controls

SKU: ZP2-F1-FB2-99

The ZP2 Series life safety control systems are bringing the speed and functionality of high-end intelligent processing too small to mid-sized addressable applications. They feature an attractive contemporary design that fits with any decor. A special… Read More

Key Features
  • 1 loop with up to 64 zones with Fire Brigade & Fire Protection controls and 300 output groups
  • Up to 24 LED Zone indicators for Fire and Fault with space for a 4 digit number
  • Auto configuration and default EN54 setup modes
  • Ethernet port with TCP/IP for remote maintenance and programming
  • EN54 compliant graphical LCD with icons and symbols for easy recognition of events
  • Jog Dial with 4 soft buttons for simple and intuitive user control
  • Aesthetic pleasing design with special paintable synthetic door
  • Easy removable door and chassis for quick and clean installation
  • All pluggable connectors
  • 3 USB ports with memory stick support and RS232 for printer support
Range:
ZP2

Limited Availability

Description

The ZP2 Series life safety control systems are bringing the speed and functionality of high-end intelligent processing too small to mid-sized addressable applications. They feature an attractive contemporary design that fits with any decor. A special plastic allows for painting in any colour and the easy to remove electronics will support in this matter. The gently lined door with the intuitive dark inset user interface and EN54 compliant graphical LCD offers a distinctive flair. The main controls are clearly, but discreetly highlighted with the focus on the central located Jog Dial. With the addressable detection and a full line of easily configured option cards and modules, USB and Ethernet® connectivity, these quick-to-configure systems offer versatility that benefits building owners and life safety system installers alike. The fire panels supplied in local language, with user interface with fire brigade and fire protection controls, with 1 loop that supports up to 254 devices (127 addresses) in 64 zones, have standard 2 supervised sounder/fire-routing outputs, which can be used as freely programmable outputs as well. In addition 2 conventional relay outputs and 2 supervised outputs, working in pair and dedicated to common fire and fault conditions, as well as 2 user configurable inputs for monitoring and control are available.
