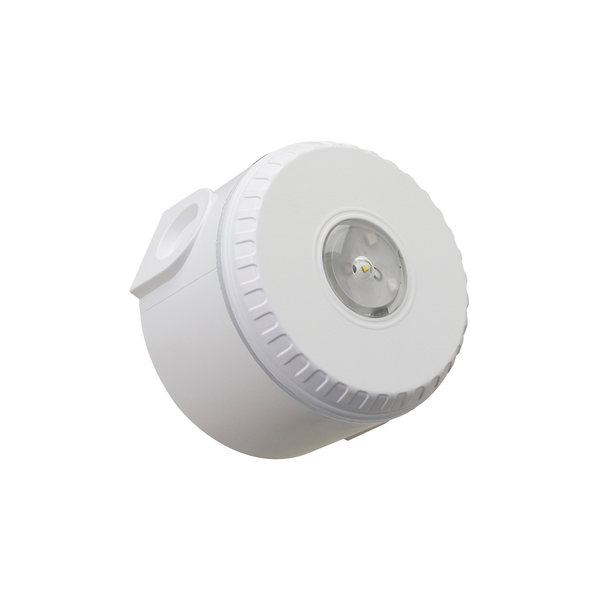

ZP Addressable Ceiling mount VAD C-3-7.5

ZP Addressable Ceiling mount VAD C-3-7.5

SKU: ZPC760W

The ZPC760W is a ZP7 series, addressable WHITE visual alarm device (VAD), approved to EN54:23 for ceiling mount applications. It features a clear lens with red LED element and incorporates a switch setting allowing it to be assigned a unique address … Read More

Key Features
  • Compatible with Ziton addressable fire panels
  • Connection layout with easy wiring and connection on installation
  • Powered directly from the ZP loop for small installations, or externally when many units are required
  • Fully addressable
  • LED technology for long service life and low current consumption, maximising the number of devices on a loop
  • Unique optics for light management with a lens design that optimises light dispersal, minimising power wastage
  • Up to 7.5m coverage diameter, reducing the number of devices required to cover an area
  • Coverage switch feature - for smaller areas switch down from 7.5 m to 3 m, reducing power consumption and saving up to 50%
  • Flash rate switch feature, reducing the power consumption by up to 50%
  • Soft start up for reduced current peak at start up, reducing circuit loading

Limited Availability

Description

The ZPC760W is a ZP7 series, addressable WHITE visual alarm device (VAD), approved to EN54:23 for ceiling mount applications. It features a clear lens with red LED element and incorporates a switch setting allowing it to be assigned a unique address on a Ziton fire panel loop. Designed for installation at a height of up to 3m and with a discrete appearance, the ZPC760W with its deep base is suitable for a variety of applications. Its unique lens design distributes light evenly in a cylindrical shape to achieve the required illumination, whist using minimum current.

Download

ZPC760W.pdf
