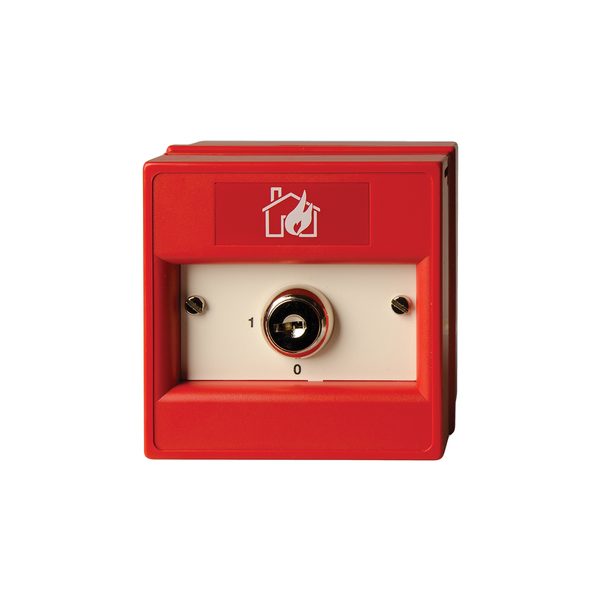

Ziton Addressable Key Switch Call Point

SKU: ZP785KS-N

The ZP785KS-N is a RED, high quality addressable key switch call point providing a manual means of initiating a fire alarm on ZP addressable fire systems. The key allows for on/off control of equipment such as ventilation systems and overrides, and p… Read More

Key Features
  • Modern stylish design
  • Easy to install
  • High quality key switch
  • Preformed mounting slots
  • EN54 'burning house' functional marking
  • Surface mount

Limited Availability

Description

The ZP785KS-N is a RED, high quality addressable key switch call point providing a manual means of initiating a fire alarm on ZP addressable fire systems. The key allows for on/off control of equipment such as ventilation systems and overrides, and prevents unauthorised access to the system. The key switch has 2 positions, with the key being trapped in one position and removable in the other. Changing between these positions require the turn of the key through a 90° angle. It offers three electrical connections which already come fitted with fly-leads. One of these connections are common while the tuning of the key result in the changeover between the other two.

Download

ZP785KS-N.pdf
