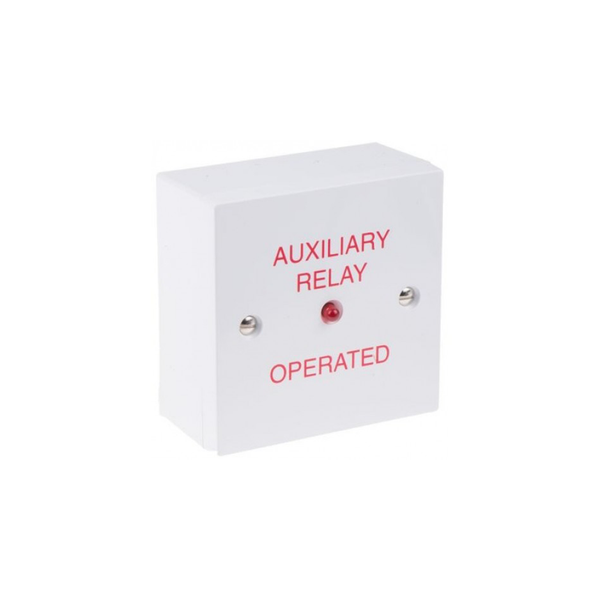

RIU-R24B 24v 'Auxiliary Relay Operated' text - Surface

SKU: 503-001

The R24 relay is intended to switch additional field devices via the two relay outputs supplied. An LED is mounted so that it remains visible during the relay operation. The supply voltage to the relay coil may be continued through the device via the… Read More

Key Features

PCB version for mounting inside PSU’s, panels, etc.
Self-contained version in a metal enclosure
Single gang plate version has ‘Auxiliary Relay Operated’ text
Custom legend or other language versions on request

Description

Description

The R24 relay is intended to switch additional field devices via the two relay outputs supplied. An LED is mounted so that it remains visible during the relay operation. The supply voltage to the relay coil may be continued through the device via the additional terminals supplied. Each device is reverse polarity protected. Typical usage examples are; automatic door retainers, smoke vents and fan shutdown, which are intended to be operated by an automatic fire system.
