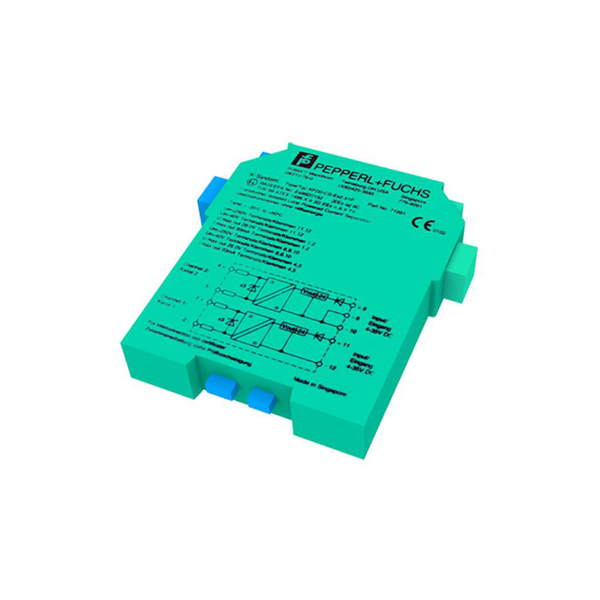

P&F 2 Channel Isolated Barrier

SKU: KFD0-CS-EX2.51P

This isolated barrier is used for intrinsic safety applications. It transfers DC signals from fire alarms, smoke alarms, and temperature sensors in hazardous areas. It can also be used to control I/P converters, power solenoids, LEDs, and audible ala… Read More

Key Features

2-channel isolated barrier
24 V DC supply (loop powered)
Current input/output 0 mA … 40 mA
I/P or transmitter power supply
Accuracy 1%
Reverse polarity protection
Up to SIL2 acc. to IEC 61508

Description
Downloads

Description

This isolated barrier is used for intrinsic safety applications. It transfers DC signals from fire alarms, smoke alarms, and temperature sensors in hazardous areas. It can also be used to control I/P converters, power solenoids, LEDs, and audible alarms. Reverse polarity protection prevents damage to the isolator caused by faulty wiring. Since this isolator is loop powered, use the technical data to verify that proper voltage is available to the field devices.
