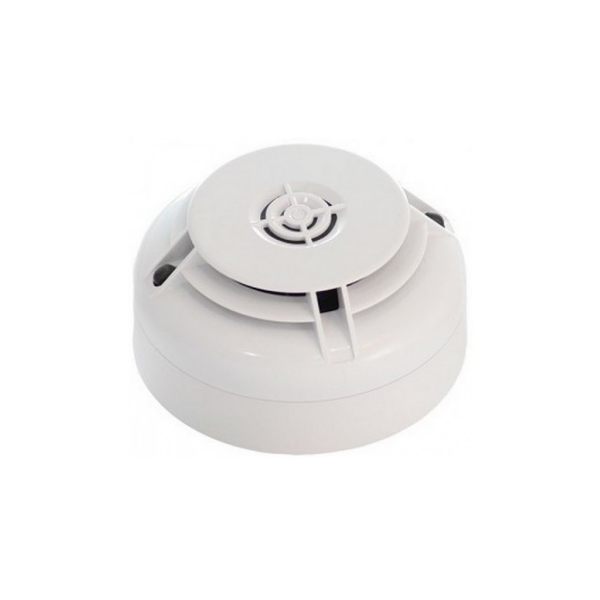

Notifier Analogue Addressable Optical Smoke Detector - White

SKU: NFXI-OPT

Key Features

Built in short circuit isolation
New advanced Opal protocol allows mapping of the loop for precise fault location using isolators
Tri colour LED offering red, green and amber colours
Rotary decade address switches
Pure white colour to complement modern buildings
100% mechanical and electrical backwards compatibility
Base designed to ease installation and wiring

Range:

Notifier

Description
Downloads

Description

The Opal photoelectric smoke detector has a completely new detection chamber design, the result of many years of research and development. This delivers improved responsiveness, reduced sensitivity changes caused by settling dust and reduced false alarms resulting from ingress of insect and other debris. The plug-in unit uses sophisticated processing circuitry that incorporates smoothing filters to help eliminate transient environmental noise conditions that can be the cause of unwanted alarms. The devices are managed by embedded software running complex algorithms that further improve resilience to false alarms and improve detection speed. The Opal NFXI-OPT has built in short circuit isolation and two integral tri-colour LEDs that provide 360° local visual indication of the device status. The LEDs are programmable with static or blinking red, amber and green status indications available.
