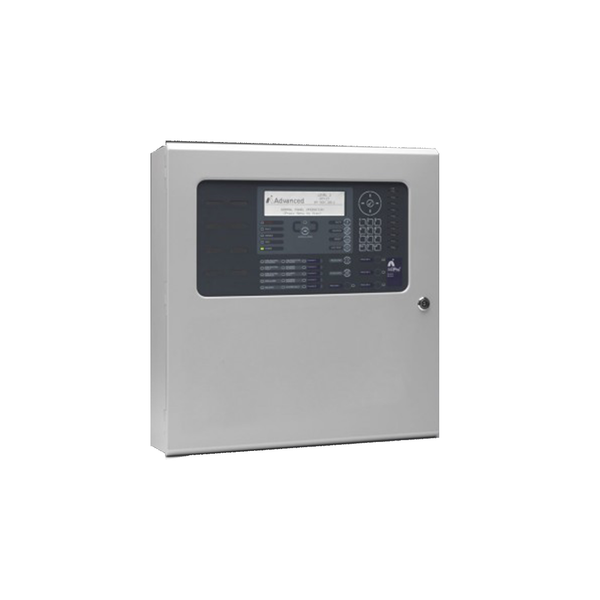

MX5-1-4 Loop Panel c/w 1 Loop Cards in Large Enclosure 475x450x120

MX5-1-4 Loop Panel c/w 1 Loop Cards in Large Enclosure 475x450x120

SKU: MX-5401

The MxPro 5 series is fully expandable from 1 to 4 loops and supplied with 4 on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 4 programmable function buttons with … Read More

Key Features
  • 20 programmable Zonal / 25 System LEDs.
  • Apollo, Argus Vega, Hochiki & Nittan Evolution protocol support.
  • Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware.
  • Dedicated USB & RS232 serial port for direct PC or modem connection.
  • Installer friendly Auto-learn, Loop Detection and On-board Scope facilities for ease of commissioning and fault finding.
  • Graphical display configurable for virtually any language
  • Integral P-Bus for system expansion via available option cards.
  • Ad-NeT peer-to-peer network with up to 2000 zones
  • Approved to BS EN54 part 2, 4 and 13.
Range:
MxPro 5

Description

The MxPro 5 series is fully expandable from 1 to 4 loops and supplied with 4 on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation. The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end-user operation. Powerful cause-and-effect programming and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the on-board alphanumeric keypad, or PC-NeT configuration software.

Download

MX-5401.pdf
