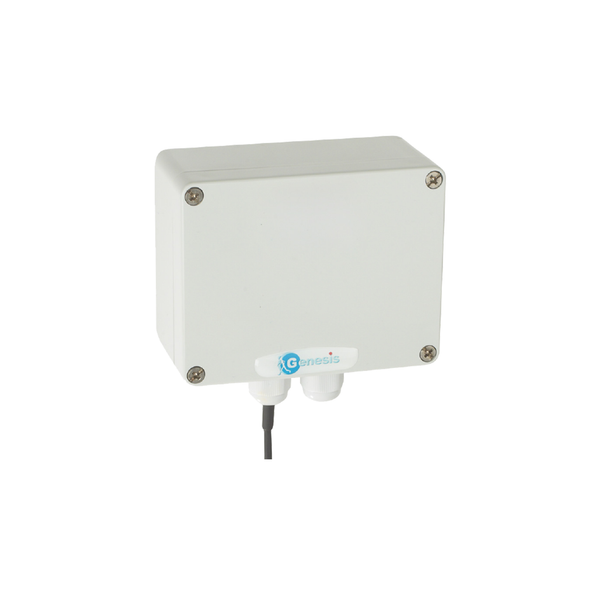

Genesis masthead receiver with RS232 output

Genesis masthead receiver with RS232 output

SKU: LGMT434

The Masthead Receiver forms the core of a Genesis wireless system. Its purpose is to receive alarm data from Genesis wireless PIRs, beams and other sensors and pass it to a control unit (LGRU16) or compatible device via a RS232 link or USB for remote… Read More

Key Features
  • Transmission Frequency: 434.525 Mhz
  • Up to 1km line of sight
  • 50 ohm 1/4 wave Aerial
  • Max Power Consumption: 58m/a at 12v DC
  • Weather Rating: IP66
  • ABS plastic housing enclosure
  • Temp range -10°C to +60°C

Limited Availability

Description

The Masthead Receiver forms the core of a Genesis wireless system. Its purpose is to receive alarm data from Genesis wireless PIRs, beams and other sensors and pass it to a control unit (LGRU16) or compatible device via a RS232 link or USB for remote configuration using a laptop or PC. The masthead receiver can transmit data as well as receive it and so can communicate back to the Genesis Walk Test instrument (LGMT434) to show all received information as well as the signal strength at the masthead. In addition, the Masthead can act as a repeater for systems that require a greater wireless range. Up to seven Mastheads can be used as repeaters on any one system.

Download

LGMT434.pdf
