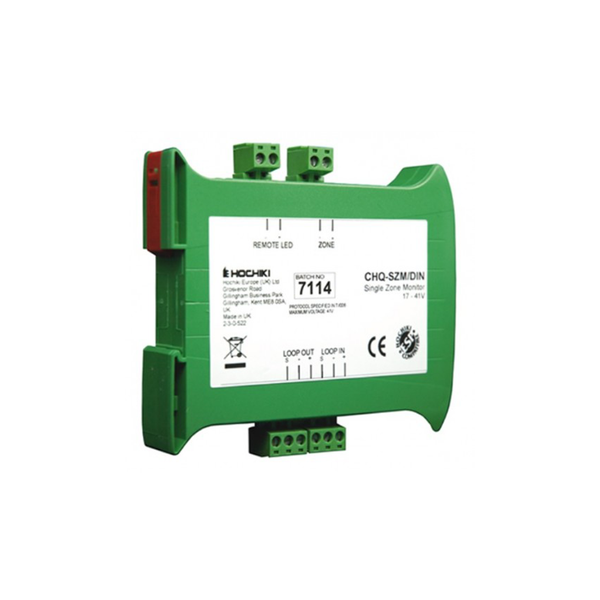

Hochiki Single Zone Monitor, DIN Encl. SCI

SKU: CHQ-SZM2/DIN(SCI)

Key Features

Loop powered
Up to 6 Conventional Detectors
Single loop address
Remote LED output
Fully monitored for short and open circuit faults
Boxed module version available
Both models feature an integral short-circuit isolator
Both models approved by LPCB and VdS

Description
Downloads

Description

Model CHQ-SZM2/DIN(SCI) is a Single Zone Monitor designed to allow up to 6 conventional detectors to be interfaced to Hochiki’s ESP analogue addressable system. The unit is supplied as a DIN Rail mountable version but a boxed module version is also available. Both models feature an integral short-circuit isolator. The CHQ-SZM2/DIN(SCI) utilises simple DIL switches for reliable addressing. The conventional zone on the CHQ-SZM2/DIN(SCI) does not support any line continuity options; if Call Points are being interfaced they should be wired at the beginning of the zone.
