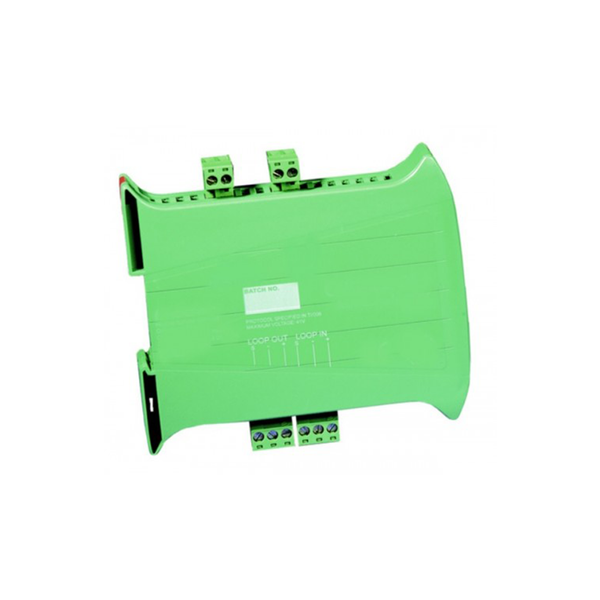

Hochiki Dual Zone Monitor - DIN Encl. with SCI

SKU: CHQ-DZM/DIN(SCI)

Model CHQ-DZM/DIN(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki’s ESP analogue addressable system. The unit also features a Schottky Diode line continuity optio… Read More

Key Features
  • Single Loop Address
  • Supports two independent zones of conventional detectors
  • Both zones fully monitored for short/open circuit
  • Requires an auxiliary 24 V dc supply
  • Boxed module version available
  • Both models feature an integral short-circuit isolator
  • Both models approved by LPCB

Limited Availability

Description

Model CHQ-DZM/DIN(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki’s ESP analogue addressable system. The unit also features a Schottky Diode line continuity option, when used in conjunction with the optional LCMU. Full monitoring against malfunction or disconnection, together with a self-test feature through the ESP protocol, ensure the integrity of the CHQ-DZM/DIN(SCI) at all times. The unit utilises simple DIL switches for reliable addressing. It is also available as a boxed module (CHQ-DZM(SCI)). Both models feature an integral short-circuit isolator. NOTE: When Resistive EOL option is chosen the conventional zone on the CHQ-DZM/DIN(SCI) does not support any line continuity options, therefore if Call Points are being interfaced they should be wired at the beginning of the zone.
