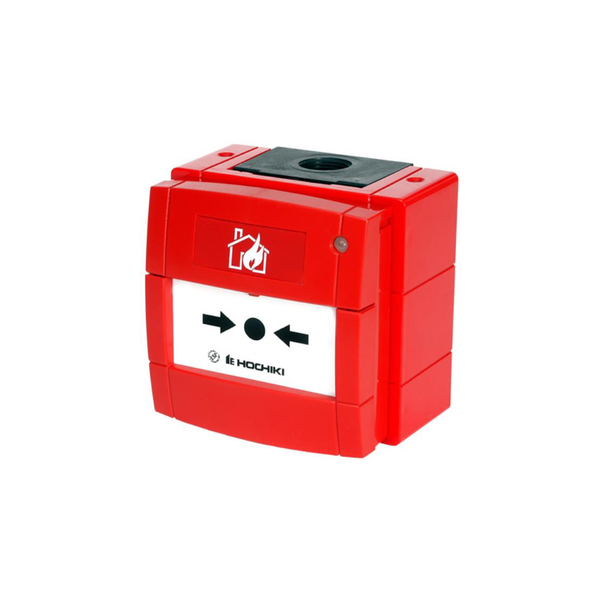

Hochiki Marine W/Proof Addressable Call Point

SKU: HCP-WM(SCI)

Key Features

Fast response
Integral short-circuit isolator
Bi-coloured status LED
Non-frangible element fitted as standard (conforms to EN54)
Addressed with TCH-B200 Hand Held Programmer
Surface mounted
LPCB Approved to EN54-11 (Red variant only- other colours not EN54. approved)
SIL Level 2 approved and ‘SMOKE VENT’ label printed variant available
IP67 rated

Description
Downloads

Description

Model HCP-WM(SCI) is a weatherproof Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing for communications polling and is continuously lit when the unit is operated – in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated. The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring. The unit is addressed using the TCH-B200 Hand Held Programmer for quick and reliable addressing.
