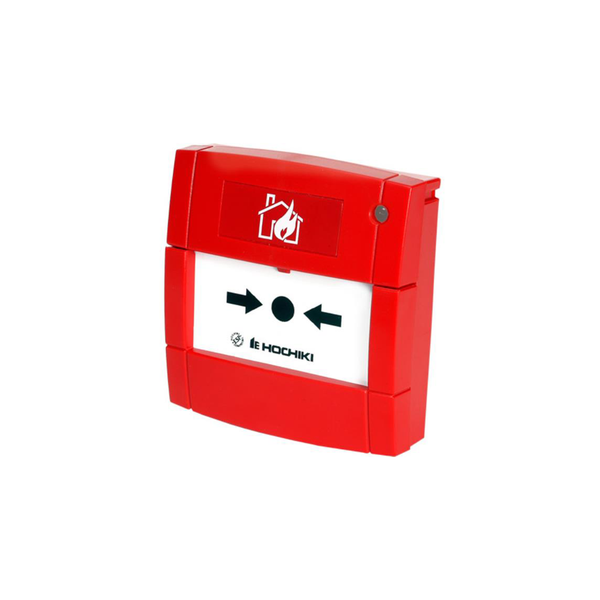

Hochiki Marine Addressable Call Point

Hochiki Marine Addressable Call Point

SKU: HCP-EM(SCI)

Model HCP-EM(SCI) is a Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing*1 for com… Read More

Key Features
  • Approved to MED by GL
  • SIL Level 2 approved variant available
  • Ideal for use in oil and gas environments
  • Fast response
  • Integral short-circuit isolator
  • Bi-coloured status LED
  • Non-frangible element fitted as standard (conforms to EN54)
  • Addressed with TCH-B200 Hand Held Programmer
  • Surface or flush mounting (if surface mounting, requires SR MOUNTING BOX – sold separately)
  • LPCB Approved to EN54

Limited Availability

Description

Model HCP-EM(SCI) is a Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing*1 for communications polling and is continuously lit when the unit is operated – in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated. The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring. The unit is addressed using the TCH-B200 Hand Held Programmer for quick and reliable addressing. The unit can be flush mounted as supplied. For surface fixing a suitable back box such as the SR MOUNTING BOX is required (sold separately). An optional glass element is also available

Download

HCP-EM(SCI).pdf
