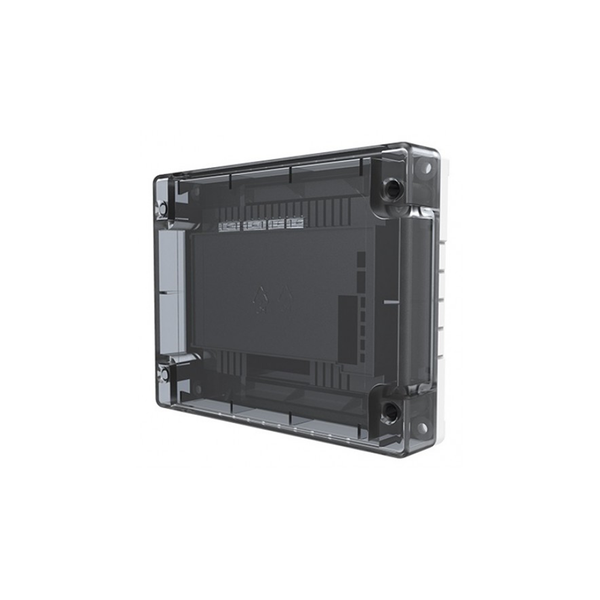

Hochiki I.S. Dual Zone Monitor SCI

Hochiki I.S. Dual Zone Monitor SCI

SKU: CHQ-DZM(SCI)-IS

Model CHQ-DZM(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki’s ESP analogue addressable system. The unit also features a Schottky Diode line continuity option, w… Read More

Key Features
  • Single Loop Address
  • Supports two independent zones of conventional detectors
  • Both zones fully monitored for short/open circuit
  • Requires an auxiliary 24 V dc supply
  • DIN rail version available
  • Both models feature an integral short-circuit isolator
  • Approved by LPCB

Limited Availability

Description

Model CHQ-DZM(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki’s ESP analogue addressable system. The unit also features a Schottky Diode line continuity option, when used in conjunction with the optional LCMU. Full monitoring against malfunction or disconnection, together with a self-test feature through the ESP protocol, ensure the integrity of the CHQ-DZM(SCI) at all times. The CHQ-DZM(SCI) utilises simple DIL switches for reliable addressing. It is available as an OEM version (as illustrated above) and also as a DIN Rail mountable module (CHQ-DZM/DIN(SCI)). Both models feature an integral short-circuit isolator. Please note: When Resistive EOL option is chosen the conventional zone on the CHQ-DZM(SCI) does not support any line continuity options, therefore if Call Points are being interfaced they should be wired at the beginning of the zone.

Download

CHQ-DZM(SCI)-IS.pdf
