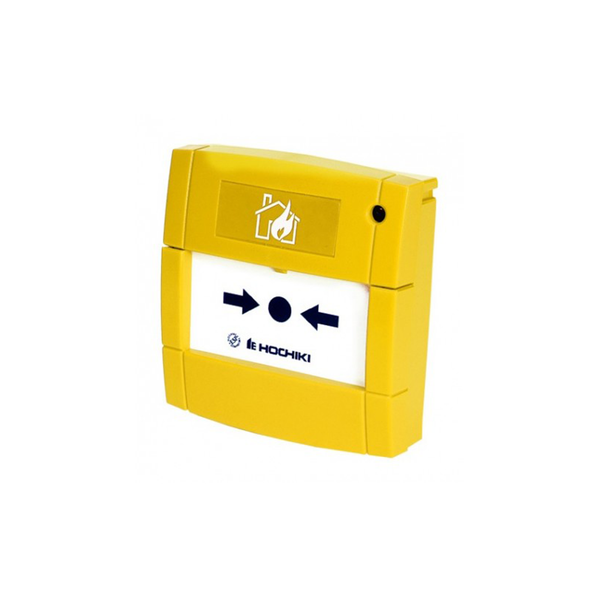

Hochiki Add. MCP with SCI (Yellow) Flush

Hochiki Add. MCP with SCI (Yellow) Flush

SKU: HCP-E/Y(SCI)

Model HCP-E/Y(SCI) is a Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bicoloured LED, which can be selected as pulsing/non-pulsing for commu… Read More

Key Features
  • Fast response
  • Integral short-circuit isolator
  • Bi-coloured status LED
  • Non-frangible element fitted as standard (conforms to EN54)
  • Addressed with TCH-B200 Hand Held Programmer
  • Surface or flush mounting (if surface mounting, requires SR MOUNTING BOX – sold separately)
  • LPCB Approved to EN54-11 (Red variant only- other colours not EN54. approved)
  • SIL Level 2 approved and ‘SMOKE VENT’ label printed variant available

Limited Availability

Description

Model HCP-E/Y(SCI) is a Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bicoloured LED, which can be selected as pulsing/non-pulsing for communications polling and is continuously lit when the HCP-E(SCI) is operated – in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring. The unit is addressed using the TCH-B200 Hand Held Programmer for quick and reliable addressing. The unit can be flush mounted as supplied. For surface fixing a suitable back box such as the SR MOUNTING BOX is required (sold separately). An optional glass element is also available. IMPORTANT NOTE: After changing the element from Glass to Flexi, please confirm the operation by pressing the resettable element
