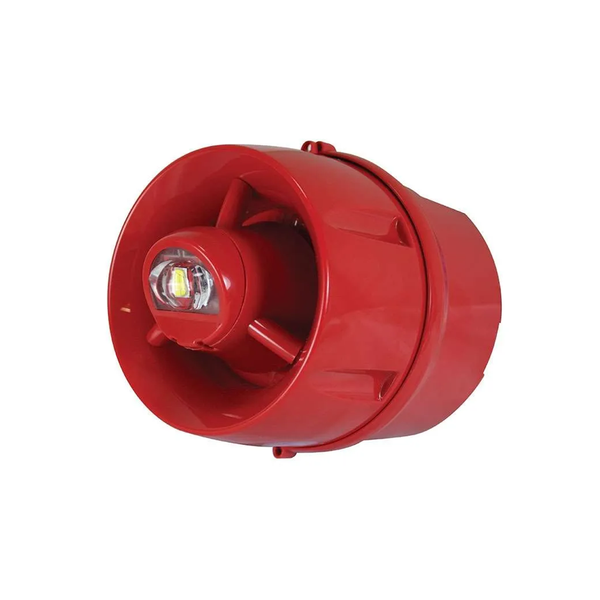

Hi-Output W-2.4-8.2 Wall VAD (With 103dB(A) Sounder (Deep Base))

The Hi-Output W-2.4-8.2 Wall VAD c/w 103dB(A) Sounder with a deep base is compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. It’s designed to be wall mounted. IP33C rated and suitable for use outdoors (note an IP65 rated version … Read More

Key Features

• Third-party certified to EN54-3 (Sounders), EN54-23 (VADs) and 17 (Isolators) by the LPCB
• Provides ‘W-2.4-8.2’ light distribution when wall mounted (min 0.4 lux over a 2.4m x8.2m cuboid area)
• Impressive 103dB(A) sound output @ 1m
• Onboard short-circuit loop isolator
• 550µA quiescent current
• 14.5mA alarm current @24V DC (VAD lit, sounder on max)
• Group addressing facility allows multiple devices to be operated simultaneously
• 7 selectable volume levels and up to 15 selectable tone pairs
• IP33C (Type B) rated
