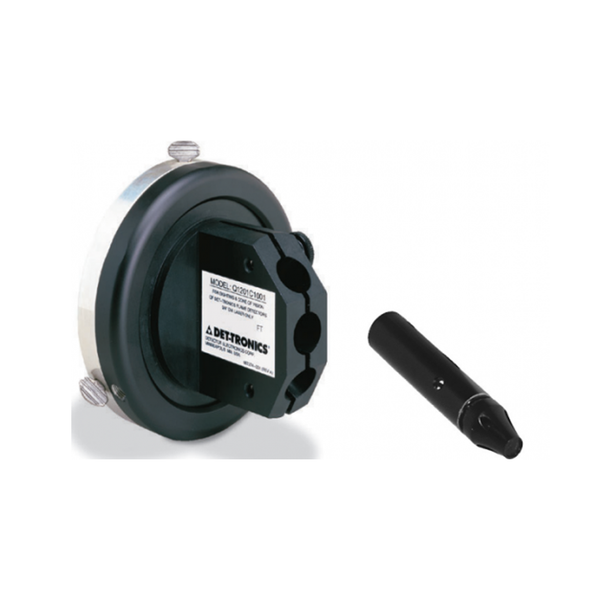

DT Pointing device Laser holder LaserAimer used with DT Series Flame Detectors (X3301, X5200, X9800)

Description

The Q1201C & LaserAimer are used with DT Series Flame Detectors (X3301, X5200, X9800) for identifying the detector's cone of vision (COV). The Q1201C easily attaches to the front of the detector for use during system startup, checkout and re-alignment. The Q1201C is designed to hold the Laser, which projects a red beam of laser light to show the exact center of the cone of vision of the detector. Two additional holding positions are available for locating the outside edges of the cone of vision for either 30 degrees off-center or 45 degrees off-center. While the laser is being used to locate the perimeter of the cone of vision, it can be rotated 360 degrees to identify the entire area of coverage of the flame detector. WARNING - Do not allow Laser to shine directly in eyes. The Laser is not an explosion-proof or intrinsically safe device. Do not use in areas that require these ratings. Do not use in combustible atmospheres.
