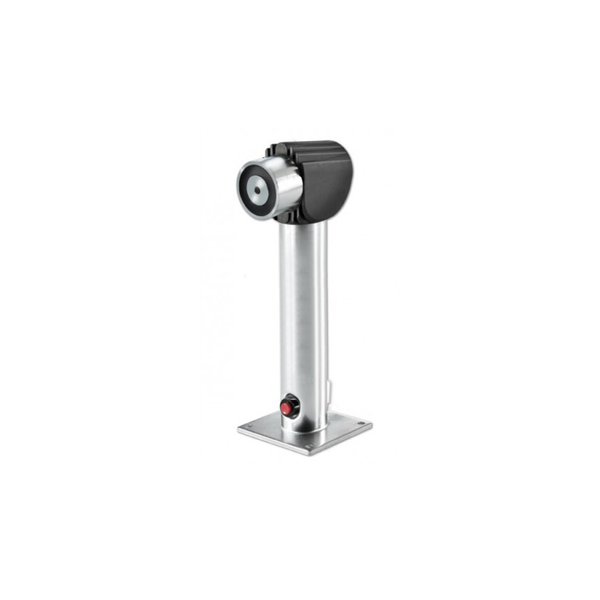

Door Holder, Universal Adjustable Tube, 400N, with Release Button, 475mm

SKU: FE260-475

The FE260-475 is a floor/wall mount door holder with a universal adjustable tube with a reach of 475 mm when used in 180° configuration and 450 mm used in 90° configuration. Which offers a 400N holding force and a release button. The magnet is constr… Read More

Key Features
  • Low power - 1.6 W
  • 400 N holding force
  • Anti-remnant ejector
  • Spark suppression diode and reverse polarity protection
  • Release button
  • EN1155 approved
  • Adjustable
  • Keeper plate included

Limited Availability

Description

The FE260-475 is a floor/wall mount door holder with a universal adjustable tube with a reach of 475 mm when used in 180° configuration and 450 mm used in 90° configuration. Which offers a 400N holding force and a release button. The magnet is constructed with a pressed coil and anti-remenance pin, giving it a protection of IP54. The protection diodes are integrated into this construction. The “head” of the FE260-475 allow for two mounting options. The first being the 180° configuration, which is normally used when the door holder is mounted on the wall. In this configuration, the magnet is located “on-top” of the tube. And the second configuration being the 90° configuration, which is normally used when the door holder is mounted on the ground. In this configuration, the magnet is located on the “side” of the tube, as shown in the picture. To allow for even more flexibility, the tube can also be cut shorter to match the exact distance required.

Download

FE260-475.pdf
