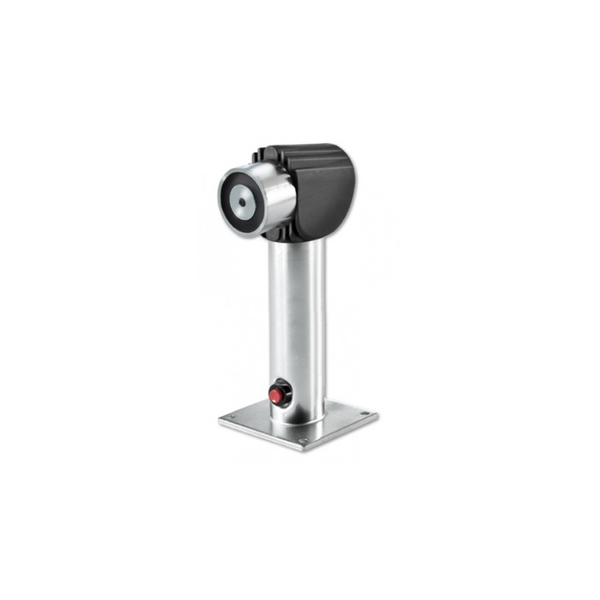

Door Holder, Universal Adjustable Tube, 400N, with Release Button, 325mm

SKU: FE260-325

The FE260-325 is a floor/wall mount door holder with a universal adjustable tube with a reach of 325 mm when used in 180° configuration and 300 mm used in 90° configuration. Which offers a 400N holding force and a release button. The magnet is constr… Read More

Key Features
  • Low power - 1.6 W
  • 400 N holding force
  • Anti-remnant ejector
  • Spark suppression diode and reverse polarity protection
  • Release button
  • EN1155 approved
  • Adjustable
  • Keeper plate included

Limited Availability

Description

The FE260-325 is a floor/wall mount door holder with a universal adjustable tube with a reach of 325 mm when used in 180° configuration and 300 mm used in 90° configuration. Which offers a 400N holding force and a release button. The magnet is constructed with a pressed coil and anti-remenance pin, giving it a protection of IP54. The protection diodes are integrated into this construction. The ā€œheadā€ of the FE260-325 allow for two mounting options. The first being the 180° configuration, which is normally used when the door holder is mounted on the wall. In this configuration, the magnet is located ā€œon-topā€ of the tube. And the second configuration being the 90° configuration, which is normally used when the door holder is mounted on the ground. In this configuration, the magnet is located on the ā€œsideā€ of the tube, as shown in the picture. To allow for even more flexibility, the tube can also be cut shorter to match the exact distance required.

Download

FE260-325.pdf
