Closing force EN1-6 Complete with free swing arm assembly in Silver

SKU: TS4000EFS-COMPLETE

Key Features

For single-action doors, leaf width up to 1400 mm
Suitable for doors up to 120kg
Adjustable Power Size EN 1-6
Compatible with left-hand and right-hand doors without the need for conversion
For fire protection doors (door closers with mounting plate)
120 minute fire rating
Suitable for Pull Side Mounting
24V DC 45mA operating voltage – Low Power Consumption
Transom Mounted available upon request but not approved for fire protection doors

Description
Downloads

Description

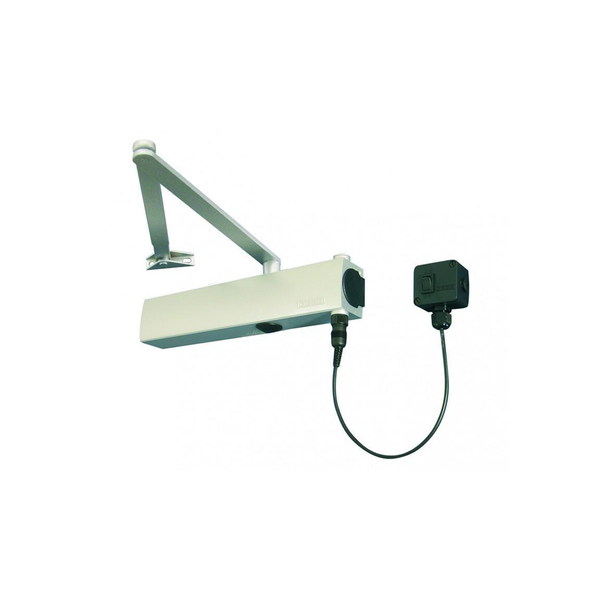

The GEZE TS4000EFS Electromagnetic Door Closer is a surface mounted rack and pinion door closer with free swing-link arm for single action right and left hand closing doors up to 1400mm wide. TS 4000 EFS (24V DC) overhead door closer for single-leaf doors features what is known as a \freeswing\ function. This means that the door will stay open between 80° and 175° in accordance with EN 1155 and can be pulled and pushed as though there is no closer fitted to the door. The TS 4000 EFS is approved for use with left and right single-action doors with a door leaf width up to 1400 mm and for mounting on fire and smoke protection doors. The power size EN 1-6 closing force to EN 1154, with optical size indicator, and the thermo-constant closing speed can be conveniently adjusted from the front; the latching action is adjusted by means of the link arm.
