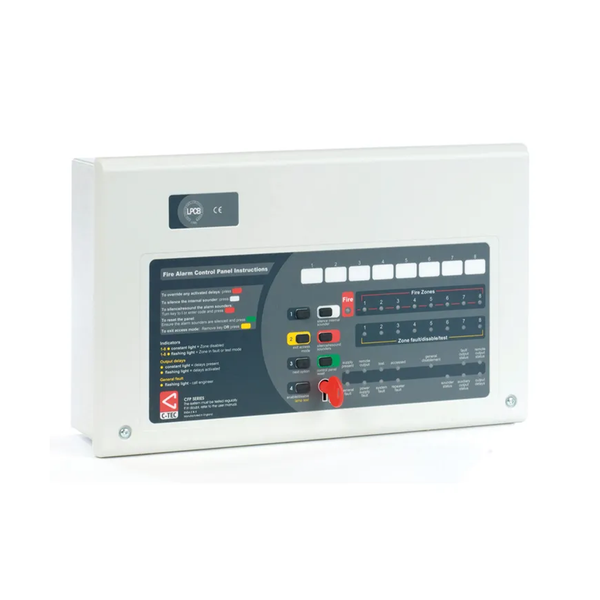

CFP Standard 4 Zone Conventional Fire Alarm Panel

SKU: CFP704-4

Key Features

Third-party certified to EN54 parts 2 and 4 by the Loss Prevention Certification Board (LPCB) and EN54 part 13 certified by Kiwa Telefication
Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry
Manufactured by C-TEC in the UK
Four detector zone circuits
Four conventional sounder circuits
Integral 1.5A EN54-4/A2 compliant switch mode PSU
Wide range of engineering functions including zone test, coincidence, zone delay and non-latching zones
Two on-board relays (Fire and Fault)
Two open-collector outputs (Remote and Reset)
‘Class change’ and alert inputs

Description
Downloads

Description

Certified to EN54 parts 2, 4 and 13, C-TEC’s CFP 4 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price. Supplied in an attractive flush or surface mountable plastic enclosure, it includes two detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided.
