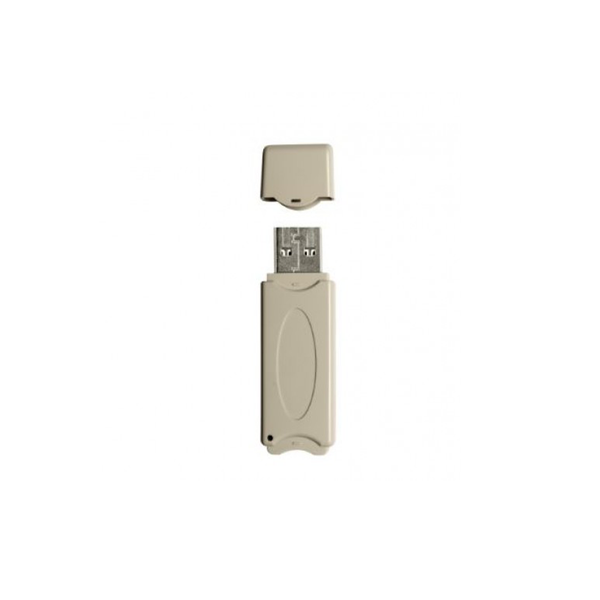

Aritech Activation Key for Contact ID

Aritech Activation Key for Contact ID

SKU: 2010-2-PAK-RMOH

The 2010-2 PAK enables the Contact ID protocol over Ethernet. The fire panel allows for its capabilities to be extended by use of USB dongles. These USB dongles are called PAK, which stands for Panel Activation Key. The use of the PAK will activate a… Read More

Key Features
  • USB Dongle which enables Contact ID protocol communication using the ZP2 panels ethernet port. Contact ID protocol provides communication between the ZP2 panel and a Remote Monitoring Station
  • PAK can only be used on one panel therefore a PAK is required for each panel which requires the feature activated.
  • PAK is linked to panel by serial number
  • Compatible with firmware 3.1 or higher

Limited Availability

Description

The 2010-2 PAK enables the Contact ID protocol over Ethernet. The fire panel allows for its capabilities to be extended by use of USB dongles. These USB dongles are called PAK, which stands for Panel Activation Key. The use of the PAK will activate additional high-end feature(s) in the panel. Depending on the required functionality, separate and multiple PAKs can be used to enable these functionalities. Functionalities like number of nodes/loops, supported detector protocol, used TCP/IP communication protocol for remote monitoring, communication towards management software like BACNet or Modbus, etc, can be enabled by usage of the PAKs. The PAK is tied to the serial number of the panel, but does not have to stay connected to the panel. It can be removed once the PAK has been installed, and the feature is enabled in the panel. It is therefore recommended that PAKs stays with the panel at all time, for example in case of performing reset functions or re-installations.
