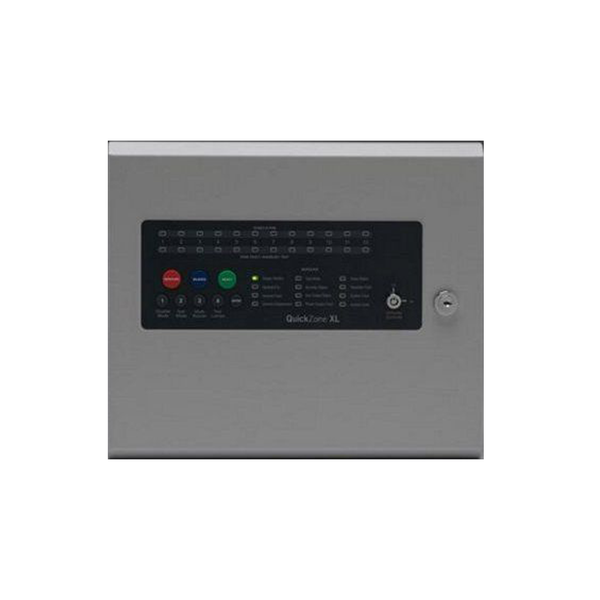

Advanced QuickZone XL - Repeater 12 Zone 300x250x80, Door 308x260x23 (Return)

Advanced QuickZone XL - Repeater 12 Zone 300x250x80, Door 308x260x23 (Return)

SKU: QZXL-R12

The QuickZone XL repeater panels have the same, easy to use, controls and indications as the main control panel, but mounted in a smaller cabinet. The repeaters are fully functional with ‘Silence’, ‘Resound’ and ‘Reset’ controls, as well as Disable a… Read More

Key Features
  • 12 Zonal, Fire & Fault indications
  • Simple colour coded buttons for control
  • Integral 1 Amp switch mode PSU
  • Class change and Alert inputs
  • Programmable Outputs
  • Test Mode & Disablement functions
  • Fully functional or passive
  • Space for up to 3.2Ah batteries
  • Key-switch or code entry for activation of controls
Range:
QuickZone

In Stock

Description

The QuickZone XL repeater panels have the same, easy to use, controls and indications as the main control panel, but mounted in a smaller cabinet. The repeaters are fully functional with ‘Silence’, ‘Resound’ and ‘Reset’ controls, as well as Disable and Test Mode functions. It is also possible to disable the controls for each or all repeater panels to make them passive (indication only). QuickZone XL panels can support up to 8 repeater panels. Repeater panels are designed to be wired in a fault tolerant (fail safe) loop configuration, to and back to the main panel again. This enables repeater panels to still work if there is a break in the cables. If replacing an older system where the existing cabling cannot be configured in a loop as above, it is possible to re-programme the panel back with a radial circuit, communications monitoring. The main circuit board has 2 switch negative inputs which can be used to sound or pulse the alarms. These inputs can also be reprogrammed for use as PSU fault inputs. The internal communications PCB has 6 switch negative programmable outputs.
