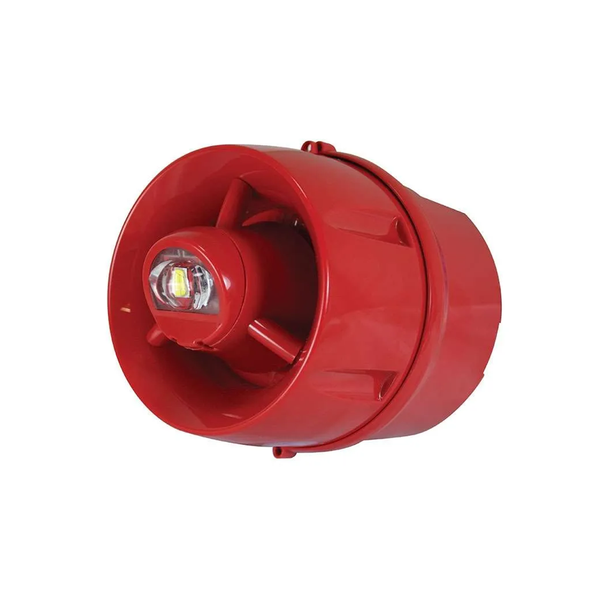

ActiV Conventional Hi-Output W-2.75-9 VAD (With 100dB(A) Soundere (Deep Base))

ActiV Conventional Hi-Output W-2.75-9 VAD (With 100dB(A) Soundere (Deep Base))

SKU: BF433C/CC/DR

The ActiV Hi-Output range of conventional sounders and combined sounder visual alarm devices (VADs) are designed for use with C-TEC’s range of fire panels and other compatible third-party panels. However, compatibility testing with third-party panels… Read More

Key Features
  • Third-party certified to EN54-3 (Sounders) and EN54-23 (VADs)
  • Provides ‘W-2.75-9’ rated light distribution when wall mounted (min. 0.4 lux over a 2.75 x 9m cuboid area). Also rated as a W-4-4 VAD
  • Impressive 100dB(A) sound output @ 1m
  • Includes 31 selectable primary tones and an optional secondary tone
  • Two volume levels (high and low)
  • Three selectable VAD flash rates (0.5Hz, 1Hz, OFF)
  • Alarm Current at 30Vdc = 12.2mA (0.5Hz) or 19.5mA (1Hz)
  • Alarm Current at 18Vdc = 14.5mA (0.5Hz) or 25mA (1Hz)
  • IP33C rated
  • Manufactured in the UK by C-TEC
Range:
ActiV

In Stock

Description

The ActiV Hi-Output range of conventional sounders and combined sounder visual alarm devices (VADs) are designed for use with C-TEC’s range of fire panels and other compatible third-party panels. However, compatibility testing with third-party panels is recommended to ensure correct operation. With a 100 dB(A) peak sound output @ 1 m, their purpose is to visually and audibly alert building occupants of a fire alarm. Units are supplied with either a shallow or deep base, in a red plastic enclosure.
