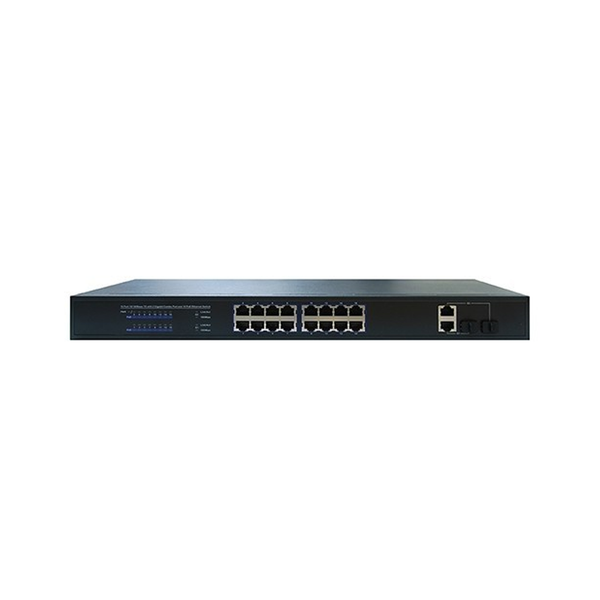

16 Channel: PoE+ Network Switch with 16 10/100Mbps RJ45 Ports and 2 10/1000Mbps

SKU: VA-SW16POE-IP-2

Key Features

Fanless Design (4+8)
Max 30W output per port capability
Gigabit Uplink and Downlink Port (8 & 16 Channel Switches) Gigabit POE Ports (8 Channel Switch)
No Configuration Required
Automatically Detects and Supplies Power
Up to 65W (4) 130W (8) & 150W (16) PoE Power to all ports

Description
Downloads

Description

The 16CH POE Network Switch with 2GIGABIT Upload Ports with VHDIPL-16 (VA-SW16POE-IP) is a 16 ports 10/100M and two Gigabit Uplink Combo Ports POE Switch is used for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections. It provides 16 10/100Mbps Auto-Negotiation RJ45 ports, 2 Gigabit Combo Ports( SFP+RJ45) and 8 or 16 POE ports. The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc. It is a 19’’ case-shaped device with 1U high. It is with the internal industrial power supplies, have two optional power supplies— 250W, 400W. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Extend Function: Power lightning protection, solid vlan.
