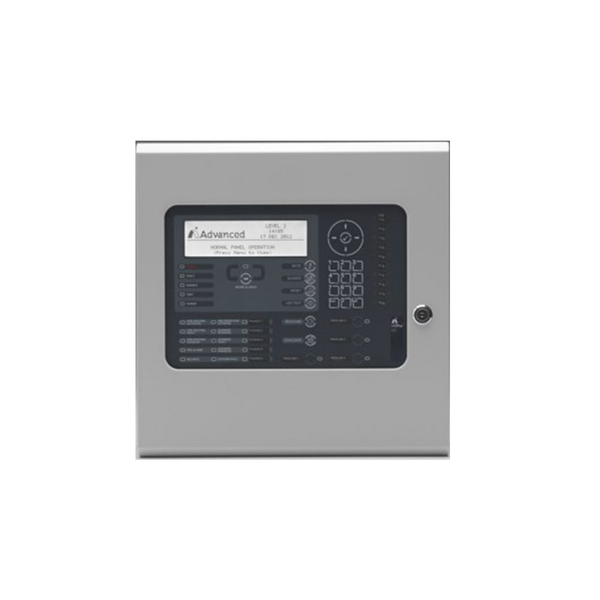

1-Loop FACP 19 Rack Mount

1-Loop FACP 19 Rack Mount

SKU: MX-5101R

The MxPro 5 series control panels are supplied with a single loop driver card, 2 on board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons w… Read More

Key Features
  • 20 programmable Zonal / 25 System LEDs.
  • Apollo, Argus Vega, Hochiki & Nittan Evolution protocol support.
  • Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware.
  • Dedicated USB & RS232 Serial Port for direct PC or modem connection.
  • Installer friendly Auto-learn, Loop Detection and On-board Scope facility.
  • Graphical display configurable for virtually any language.
  • Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination.
  • Integral P-Bus for system expansion via available option cards.
  • Ad-NeT peer-to-peer network with up to 2000 zones
Range:
MxPro 5

In Stock

Description

The MxPro 5 series control panels are supplied with a single loop driver card, 2 on board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation. The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple 'select & click' programming aid for engineer configuration and end user operation. Powerful cause-and-effect programming coupled with dynamic zoning, and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. The panel is fully programmable on-site via the on-board alphanumeric keypad, or PC-NeT Configuration Software. An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes which include configuration, service, logo and virtual panel tools to allow the flexibility of the equipment to be fully explored. Simply adding a network card allows the panel to communicate with any other MxPro 5 fire panel, remote terminal, or network peripheral, such as ipGateway™, BMS or graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.

Download

MX-5101R.pdf
