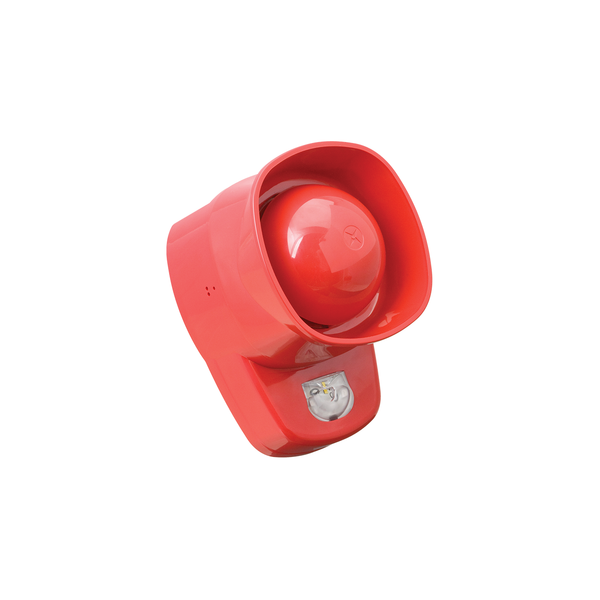

ZP Addressable Wall mount Sounder + VAD W-2.4-7.5

ZP Addressable Wall mount Sounder + VAD W-2.4-7.5

SKU: ZPW766R

The ZPW766R is a ZP7 series, Ziton protocol addressable RED sounder with a built in visual alarm device (VAD), the latter approved for wall mount applications. The VAD features a clear lens with red LED element. The ZPW766 incorporates a switch setti… Read More

Key Features
  • Compatible with Ziton addressable fire panels
  • Connection layout with easy wiring and connection on installation
  • Powered directly from the ZP loop for small installations, or externally when many units are required
  • Fully addressable
  • LED technology for long service life and low current consumption, maximising the number of devices on a loop
  • Unique optics for light management with a lens design that optimises light dispersal, minimising power wastage
  • Up to 7.5m coverage diameter, reducing the number of devices required to cover an area
  • Coverage switch feature - for smaller areas switch down from 7.5 m to 2.5 m, reducing power consumption and saving up to 50%
  • Flash rate switch feature, reducing the power consumption by up to 50%
  • Soft start up for reduced current peak at start up, reducing circuit loading

In Stock

Description

The ZPW766R is a ZP7 series, Ziton protocol addressable RED sounder with a built in visual alarm device (VAD), the latter approved for wall mount applications. The VAD features a clear lens with red LED element. The ZPW766 incorporates a switch setting allowing it to be assigned a unique address on a Ziton fire panel loop. With its durable design, high sound output and VAD designed for installation up to a height of 2.4 m, the ZPW766 ensures reliability and is suitable for a variety of indoor open areas where there is higher than normal background noise, whilst the unique lens design of the VAD distributes light evenly over the selected surface area.

Download

ZPW766R.pdf
