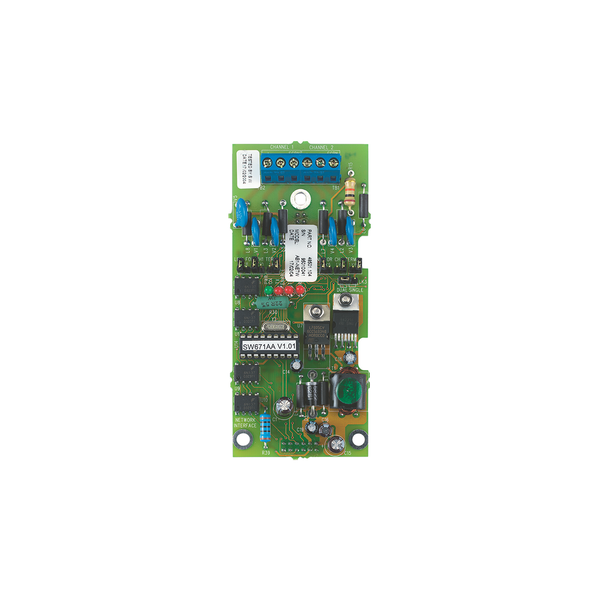

Ziton ZP3 Accessory Board Cabinet

SKU: ZP3-AB1

The ZP3AB-NET1 enables ZP3 control panels to be connected together to form networks. The interface card is attached directly onto the ZP3 main control board inside the panel enclosure. Up to 64 standalone control panels can be linked to form the ZP n… Read More

Key Features
  • Up to 64 panel networking
  • Housed inside main panel enclosure
  • Complete cross panel communications
  • Inter panel cause and effect operation
Range:
ZP3

Limited Availability

Description

The ZP3AB-NET1 enables ZP3 control panels to be connected together to form networks. The interface card is attached directly onto the ZP3 main control board inside the panel enclosure. Up to 64 standalone control panels can be linked to form the ZP network allowing the integration of over 32 000 system devices. Networks can be designed as peer to peer systems where all control panels are connected to form a single coordinated fire detection and alarm system. Each panel controls its own devices and displays its own system information, but is capable of cross panel cause and effect operation. The ZP3AB-NET1 network board also enables hierarchical networks to be easily configured, where one or more control panels can be assigned as masters displaying complete system status.

Download

ZP3-AB1.pdf
