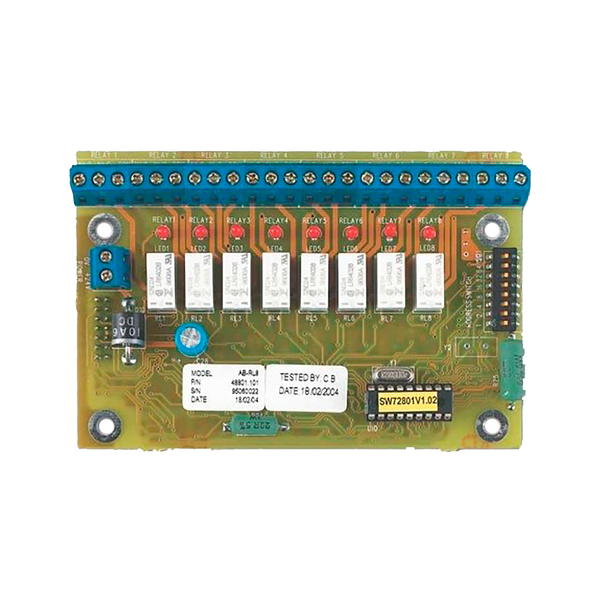

Ziton ZP3 8 way relay board

Ziton ZP3 8 way relay board

SKU: ZP3AB-RL8

The ZP3AB-RL8 is one of a series of additional, auxiliary boards designed to extend the ZP3 panel standard range of input/output facilities. Boards are modular in design, and are mounted inside the ZP3 panel enclosure, by means of a ZP3-AC1 auxiliary… Read More

Key Features
  • Eight programmable relays
  • Up to three modules within panel enclosure
  • Outputs rated at 2 Amps at 30 VDC or 30 VAC
  • Operation of individual output confirmed by LED indication
Range:
ZP3

Limited Availability

Description

The ZP3AB-RL8 is one of a series of additional, auxiliary boards designed to extend the ZP3 panel standard range of input/output facilities. Boards are modular in design, and are mounted inside the ZP3 panel enclosure, by means of a ZP3-AC1 auxiliary chassis. Up to three boards can be fitted into a ZP3 panel. They may be all of a single type, or any combination from the I/O module range. The addition of auxiliary boards can increase the panel outputs to a maximum of 72 all housed within the ZP3 enclosure. Further boards can be added to a system, accommodated in a remote control cabinet, usually located alongside the ZP3 panel. Various sized cabinets are available, designed to match the control panel enclosure. Each ZP3 panel has the ability to operate up to 896 outputs, of which 768 are programmable. The ZP3AB-RL8 offers eight programmable relay outputs. Contacts are volt free, single pole, change over and rated at 2 Amps at 30VDC or 30VAC. Power to operate modules can be provided internally from the control panel.

Download

ZP3AB-RL8.pdf
