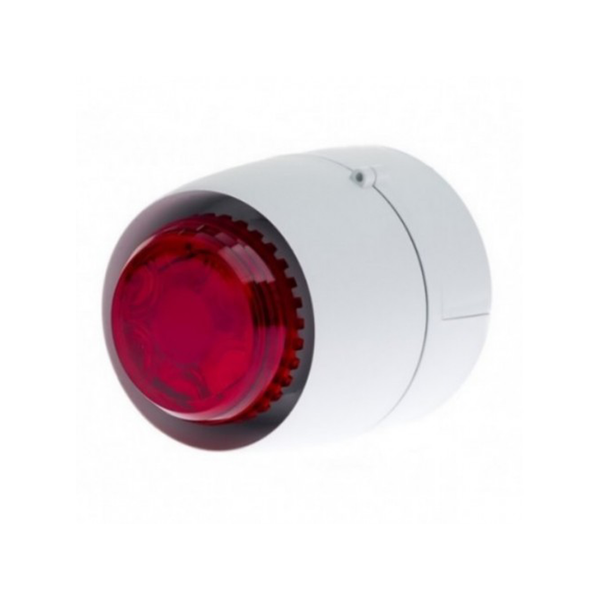

VTB-32E-DB-WB/RL 24v Wall Sounder Beacon 32 tone DB, WB,RF. EN54

VTB-32E-DB-WB/RL 24v Wall Sounder Beacon 32 tone DB, WB,RF. EN54

SKU: 511-098L

The VTB 24Vdc sounder beacon is part of the VTG family of products designed for use with conventional fire alarm\nsystems including two wire (SAV-WIRE®) and other general 24Vdc applications. The sounder function, like all VTG products, comes as stand… Read More

Key Features
  • 32 tones plus a selectable override tone
  • Shallow base IP43 and deep base IP65 versions available
  • Switch selectable beacon only feature
  • Unique twist and lock bayonet mounting system
  • Removable cover on deep base for surface wiring
  • Features base locking system as standard
Range:
VTB

Limited Availability

Description

The VTB 24Vdc sounder beacon is part of the VTG family of products designed for use with conventional fire alarm\nsystems including two wire (SAV-WIRE®) and other general 24Vdc applications. The sounder function, like all VTG products, comes as standard with 32 tones. The beacon function has been designed for maximum all-round visibility, coupled with low power consumption utilising an array of energy efficient LEDs. The sounder function features a two-stage alarm override which is activated by a third negative wire from the fire panel. Both the sounder and beacon functions are fully synchronised. The product can also be used as a beacon only which is easily selected by a DIL switch at the time of installation.

Download

511-098L.pdf
