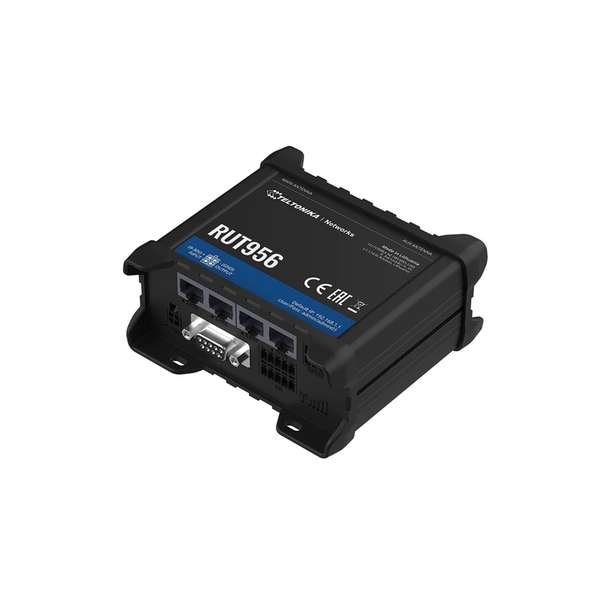

RUT956 Router

RUT956 Router

SKU: RUT956

RUT956 is an industrial router that combines dual-SIM cellular 4G LTE, Wi-Fi, and wired connectivity options and additionally offers GNSS capabilities. Automatic WAN failover ensures solution uptime even if the primary connection is lost. Serial comm… Read More

Key Features
  • 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
  • 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
  • Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
  • SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • Operator black/white list
  • Band lock, Used band status display
  • Auto APN
  • Direct connection (bridge) between mobile ISP and device on LAN
  • Possibility to use different PDNs for multiple network access and services (not available in standard FW)
  • up to 100 simultaneous connections

Limited Availability

Description

RUT956 is an industrial router that combines dual-SIM cellular 4G LTE, Wi-Fi, and wired connectivity options and additionally offers GNSS capabilities. Automatic WAN failover ensures solution uptime even if the primary connection is lost. Serial communication interfaces enable integrating more varied devices to the solution ecosystem, even legacy equipment. Digital and analog Inputs/Outputs with advanced RutOS software features facilitate equipment control, automation, and event notifications. Packed with advanced industrial software features, including Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPNs.
