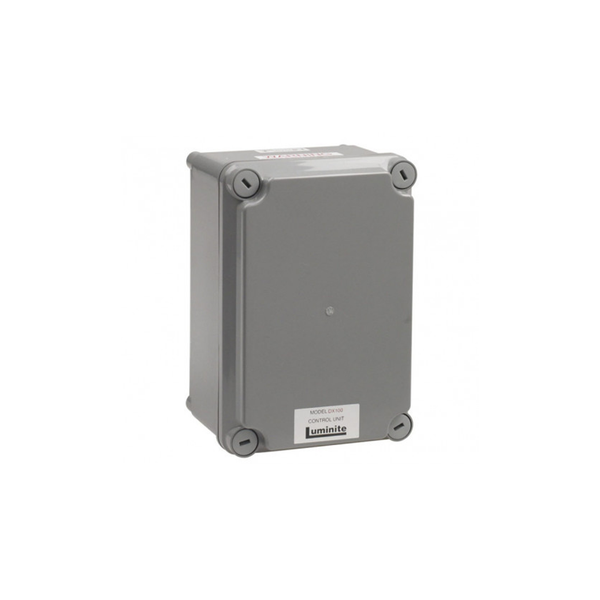

Single channel lighting control unit for GX200

SKU: DX100

The DX100 is a single circuit lighting control unit with a high power switching relay for various lighting loads. It works in conjunction with GX200 wired low voltage external PIR detectors. The DX100 is mains powered and provides the 12 volts DC fo… Read More

Key Features

220-240V 50HZ
100m cable length
Max of 6 detectors
Temp. range -10 to +60 degrees
IP66
For internal or external mounting

Description
Downloads

Description

The DX100 is a single circuit lighting control unit with a high power switching relay for various lighting loads. It works in conjunction with GX200 wired low voltage external PIR detectors. The DX100 is mains powered and provides the 12 volts DC for the PIR detectors and/or radio receiver. Up to six GX200 detectors may be used with one control unit and are wired using low cost four core alarm cable up to a maximum length of 100 metres.
